Performance @27ºC, Vacuum |
Performance @50ºC, Dry N2 |
Cold Side |
Hot Side |

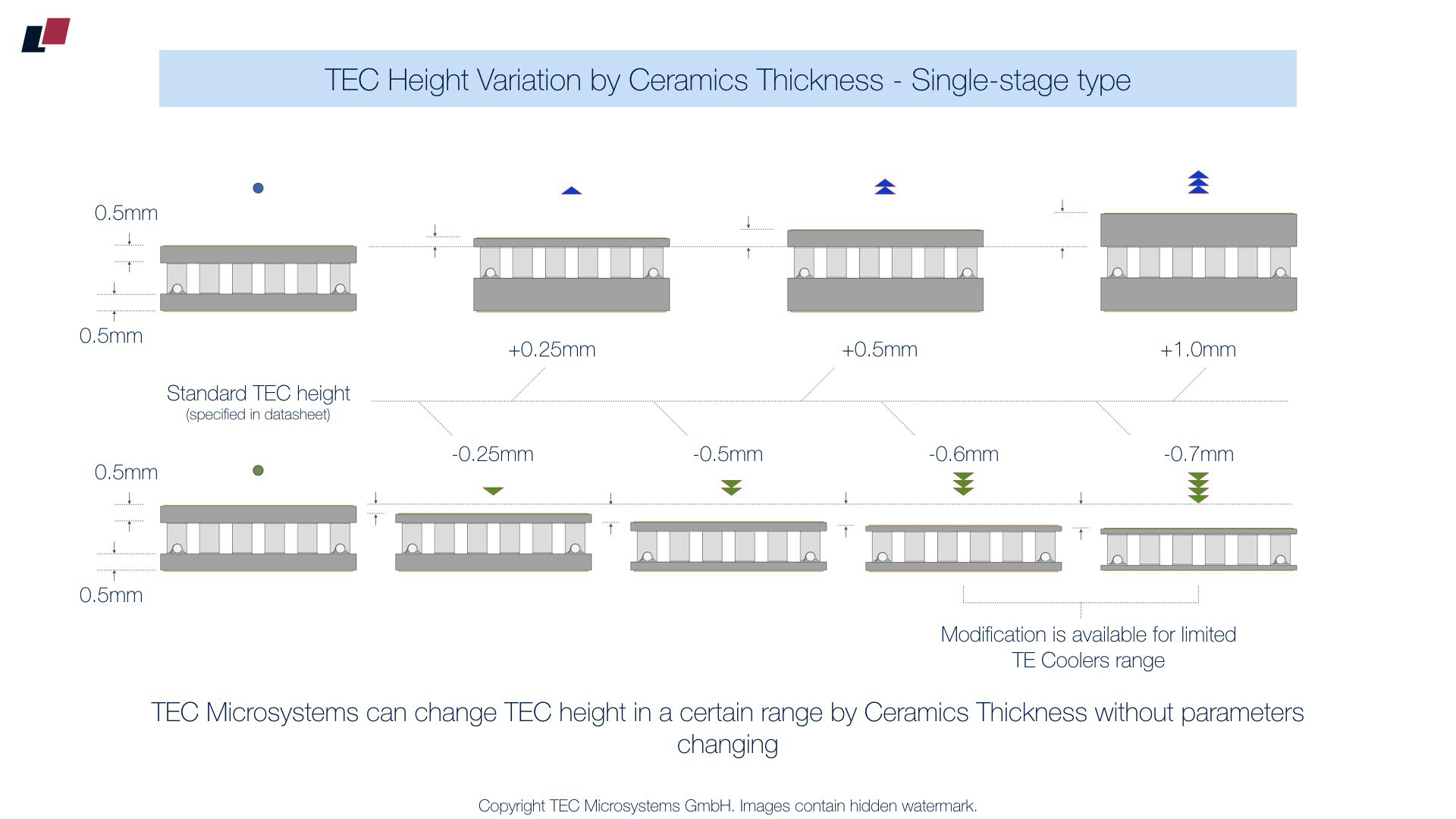

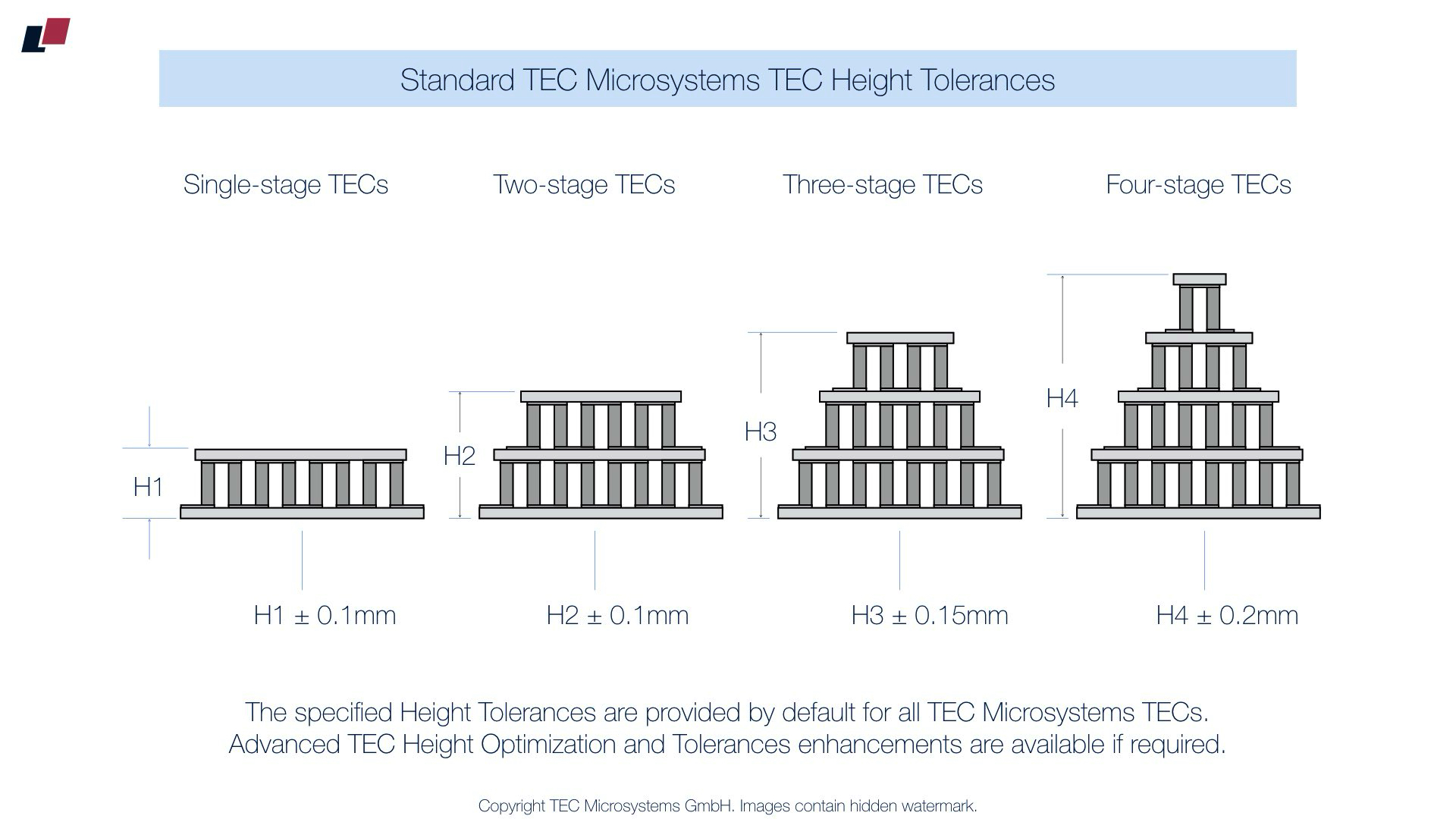

Height |
||||||||||
|
TEC TYPE |
dTmax |

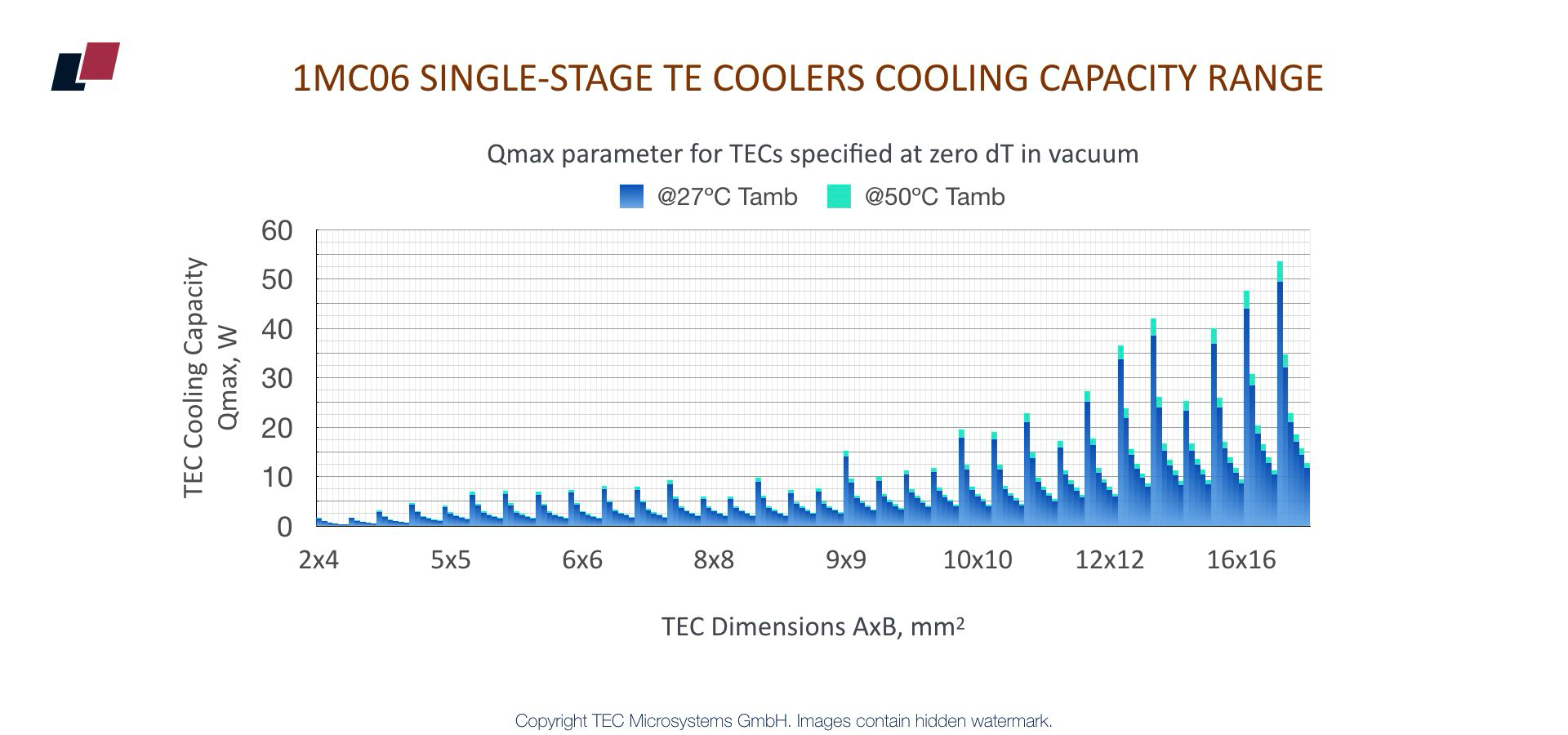

Qmax |
Imax |
Umax |
ACR |
dTmax |
Qmax |
Imax |
Umax |
ACR |
A |
B |
C |
D |
H |
|
|
K |
W |
A |
V |
Ohm |
K |
W |
A |
V |
Ohm |
mm |
mm |
mm |
mm |
mm |
|
1MC06-004-xx |
|||||||||||||||
|
1MC06-004-03 |
67 |
1.5 |
5.0 |
0.5 |
0.07 |
71 |
1.6 |
5.0 |
0.5 |
0.08 |
2.0 |
4.0 |
4.0 |
4.0 |
1.4 |
|
1MC06-004-05 |
69 |
0.9 |
3.1 |
0.5 |
0.12 |
73 |
1.0 |
3.1 |
0.5 |
0.13 |
2.0 |
4.0 |
4.0 |
4.0 |
1.6 |
|
1MC06-004-08 |
71 |
0.6 |
2.0 |
0.5 |
0.19 |
73 |
0.7 |
2.0 |
0.6 |
0.21 |
2.0 |
4.0 |
4.0 |
4.0 |
1.9 |
|
1MC06-004-10 |
71 |
0.5 |
1.6 |
0.5 |
0.23 |
73 |
0.5 |
1.6 |
0.6 |
0.26 |
2.0 |
4.0 |
4.0 |
4.0 |
2.1 |
|
1MC06-004-12 |
71 |
0.4 |
1.4 |
0.5 |
0.28 |
72 |
0.5 |
1.4 |
0.6 |
0.31 |
2.0 |
4.0 |
4.0 |
4.0 |
2.3 |
|
1MC06-004-15 |
71 |
0.3 |
1.1 |
0.5 |
0.35 |
71 |
0.4 |
1.1 |
0.6 |
0.39 |
2.0 |
4.0 |
4.0 |
4.0 |
2.6 |
|
1MC06-007-xx |
|||||||||||||||
|
1MC06-007-05 |
68 |
1.6 |
3.1 |
0.9 |
0.21 |
72 |
1.7 |
3.1 |
0.9 |
0.23 |
4.0 |
4.0 |
4.0 |
4.0 |
1.6 |
|
1MC06-007-08 |
70 |
1.0 |
2.0 |
0.9 |
0.33 |
72 |
1.1 |
2.0 |
1.0 |
0.37 |
4.0 |
4.0 |
4.0 |
4.0 |
1.9 |
|
1MC06-007-10 |
70 |
0.9 |
1.6 |
0.9 |
0.41 |
72 |
0.9 |
1.6 |
1.0 |
0.46 |
4.0 |
4.0 |
4.0 |
4.0 |
2.1 |
|
1MC06-007-12 |
71 |
0.7 |
1.3 |
0.9 |
0.49 |
72 |
0.8 |
1.3 |
1.0 |
0.55 |
4.0 |
4.0 |
4.0 |
4.0 |
2.3 |
|
1MC06-007-15 |
71 |
0.6 |
1.1 |
0.9 |
0.61 |
71 |
0.6 |
1.1 |
1.0 |
0.68 |
4.0 |
4.0 |
4.0 |
4.0 |
2.6 |
|
1MC06-008-xx |
|||||||||||||||
|
1MC06-008-03 |
66 |
2.8 |
5.0 |
1.0 |
0.15 |
70 |
3.1 |
4.9 |
1.1 |
0.16 |
4.0 |
4.0 |
6.0 |
4.0 |
1.4 |
|
1MC06-008-05 |
69 |
1.8 |
3.1 |
1.0 |
0.24 |
73 |
2.0 |
3.1 |
1.1 |
0.27 |
4.0 |
4.0 |
6.0 |
4.0 |
1.6 |
|
1MC06-008-08 |
70 |
1.2 |
2.0 |
1.0 |
0.38 |
73 |
1.3 |
2.0 |
1.1 |
0.42 |
4.0 |
4.0 |
6.0 |
4.0 |
1.9 |
|
1MC06-008-10 |
71 |
1.0 |
1.6 |
1.0 |
0.47 |
73 |
1.1 |
1.6 |
1.1 |
0.52 |
4.0 |
4.0 |
6.0 |
4.0 |
2.1 |
|
1MC06-008-12 |
71 |
0.8 |
1.3 |
1.0 |
0.56 |
73 |
0.9 |
1.3 |
1.1 |
0.62 |
4.0 |
4.0 |
6.0 |
4.0 |
2.3 |
|
1MC06-008-15 |
71 |
0.7 |
1.1 |
1.0 |
0.69 |
72 |
0.7 |
1.1 |
1.1 |
0.78 |
4.0 |
4.0 |
6.0 |
4.0 |
2.6 |
|
1MC06-012-xx |
|||||||||||||||
|
1MC06-012-03 |
66 |
4.3 |
5.0 |
1.5 |
0.22 |
71 |
4.6 |
4.9 |
1.6 |
0.25 |
4.0 |
6.0 |
6.0 |
6.0 |
1.4 |
|
1MC06-012-05 |
69 |
2.8 |
3.1 |
1.5 |
0.36 |
73 |
3.0 |
3.1 |
1.6 |
0.40 |
4.0 |
6.0 |
6.0 |
6.0 |
1.6 |
|
1MC06-012-08 |
70 |
1.8 |
2.0 |
1.5 |
0.56 |
74 |
2.0 |
2.0 |
1.6 |
0.63 |
4.0 |
6.0 |
6.0 |
6.0 |
1.9 |
|
1MC06-012-10 |
71 |
1.5 |
1.6 |
1.5 |
0.70 |
74 |
1.6 |
1.6 |
1.6 |
0.78 |
4.0 |
6.0 |
6.0 |
6.0 |
2.1 |
|
1MC06-012-12 |
71 |
1.2 |
1.3 |
1.5 |
0.84 |
73 |
1.3 |
1.3 |
1.6 |
0.93 |
4.0 |
6.0 |
6.0 |
6.0 |
2.3 |
|
1MC06-012-15 |
71 |
1.0 |
1.1 |
1.5 |
1.04 |
73 |
1.1 |
1.1 |
1.6 |
1.16 |
4.0 |
6.0 |
6.0 |
6.0 |
2.6 |
|
1MC06-017-xx |
|||||||||||||||
|
1MC06-017-05 |
68 |
3.8 |
3.1 |
2.1 |
0.51 |
72 |
4.2 |
3.0 |
2.3 |
0.56 |
6.0 |
6.0 |
6.0 |
6.0 |
1.6 |
|
1MC06-017-08 |
70 |
2.5 |
2.0 |
2.1 |
0.80 |
73 |
2.8 |
2.0 |
2.3 |
0.89 |
6.0 |
6.0 |
6.0 |
6.0 |
1.9 |
|
1MC06-017-10 |
71 |
2.1 |
1.6 |
2.1 |
0.99 |
73 |
2.2 |
1.6 |
2.3 |
1.11 |
6.0 |
6.0 |
6.0 |
6.0 |
2.1 |
|
1MC06-017-12 |
71 |
1.7 |
1.3 |
2.1 |
1.18 |
73 |
1.9 |
1.3 |
2.3 |
1.32 |
6.0 |
6.0 |
6.0 |
6.0 |
2.3 |
|
1MC06-017-15 |
71 |
1.4 |
1.1 |
2.1 |
1.48 |
73 |
1.5 |
1.1 |
2.3 |
1.65 |
6.0 |
6.0 |
6.0 |
6.0 |
2.6 |
|
1MC06-018-xx |
|||||||||||||||
|
1MC06-018-03 |
66 |
6.4 |
4.9 |
2.2 |
0.33 |
70 |
6.9 |
4.9 |
2.4 |
0.37 |
6.0 |
6.0 |
8.0 |
6.0 |
1.4 |
|
1MC06-018-05 |
69 |
4.1 |
3.1 |
2.2 |
0.54 |
73 |
4.5 |
3.1 |
2.4 |
0.60 |
6.0 |
6.0 |
8.0 |
6.0 |
1.6 |
|
1MC06-018-08 |
70 |
2.7 |
2.0 |
2.2 |
0.84 |
74 |
2.9 |
2.0 |
2.5 |
0.94 |
6.0 |
6.0 |
8.0 |
6.0 |
1.9 |
|
1MC06-018-10 |
71 |
2.2 |
1.6 |
2.2 |
1.05 |
74 |
2.4 |
1.6 |
2.5 |
1.17 |
6.0 |
6.0 |
8.0 |
6.0 |
2.1 |
|
1MC06-018-12 |
71 |
1.8 |
1.3 |
2.2 |
1.25 |
74 |
2.0 |
1.3 |
2.5 |
1.40 |
6.0 |
6.0 |
8.0 |
6.0 |
2.3 |
|
1MC06-018-15 |
71 |
1.5 |
1.1 |
2.2 |
1.56 |
73 |
1.6 |
1.1 |
2.5 |
1.75 |
6.0 |
6.0 |
8.0 |
6.0 |
2.6 |
|
1MC06-018-xx/1 |
|||||||||||||||
|
1MC06-018-03/1 |
67 |
6.5 |
5.0 |
2.2 |
0.33 |
71 |
7.1 |
5.0 |
2.4 |
0.37 |
6.0 |
6.2 |
6.0 |
12.5 |
1.4 |
|
1MC06-018-05/1 |
69 |
4.2 |
3.1 |
2.2 |
0.54 |
73 |
4.6 |
3.1 |
2.5 |
0.60 |
6.0 |
6.2 |
6.0 |
12.5 |
1.6 |
|
1MC06-018-08/1 |
71 |
2.7 |
2.0 |
2.2 |
0.84 |
74 |
3.0 |
2.0 |
2.5 |
0.94 |
6.0 |
6.2 |
6.0 |
12.5 |
1.9 |
|
1MC06-018-10/1 |
71 |
2.2 |
1.6 |
2.2 |
1.05 |
74 |
2.4 |
1.6 |
2.5 |
1.17 |
6.0 |
6.2 |
6.0 |
12.5 |
2.1 |
|
1MC06-018-12/1 |
71 |
1.9 |
1.4 |
2.2 |
1.25 |
74 |
2.0 |
1.4 |
2.5 |
1.40 |
6.0 |
6.2 |
6.0 |
12.5 |
2.3 |
|
1MC06-018-15/1 |
71 |
1.5 |
1.1 |
2.3 |
1.56 |
73 |
1.6 |
1.1 |
2.5 |
1.75 |
6.0 |
6.2 |
6.0 |
12.5 |
2.6 |
|
1MC06-018-xx/2 |
|||||||||||||||
|
1MC06-018-03/2 |
66 |
6.4 |
4.9 |
2.2 |
0.33 |
70 |
6.9 |
4.9 |
2.4 |
0.37 |
6.0 |
6.2 |
6.0 |
8.2 |
1.4 |
|
1MC06-018-05/2 |
69 |
4.1 |
3.1 |
2.2 |
0.54 |
73 |
4.5 |
3.1 |
2.4 |
0.60 |
6.0 |
6.2 |
6.0 |
8.2 |
1.6 |
|
1MC06-018-08/2 |
70 |
2.7 |
2.0 |
2.2 |
0.84 |
74 |
2.9 |
2.0 |
2.5 |
0.94 |
6.0 |
6.2 |
6.0 |
8.2 |
1.9 |
|
1MC06-018-10/2 |
71 |
2.2 |
1.6 |
2.2 |
1.05 |
74 |
2.4 |
1.6 |
2.5 |
1.17 |
6.0 |
6.2 |
6.0 |
8.2 |
2.1 |
|
1MC06-018-12/2 |
71 |
1.8 |
1.3 |
2.2 |
1.25 |
73 |
2.0 |
1.3 |
2.5 |
1.40 |
6.0 |
6.2 |
6.0 |
8.2 |
2.3 |
|
1MC06-018-15/2 |
71 |
1.5 |
1.1 |
2.2 |
1.56 |
73 |
1.6 |
1.1 |
2.5 |
1.75 |
6.0 |
6.2 |
6.0 |
8.2 |
2.6 |
|
1MC06-018-xx/3 |
|||||||||||||||
|
1MC06-018-03/3 |
67 |
6.7 |
5.1 |
2.2 |
0.33 |
72 |
7.3 |
5.0 |
2.4 |
0.37 |
4.3 |
9.0 |
4.3 |
10.1 |
0.9 |
|
1MC06-018-05/3 |
70 |
4.3 |
3.1 |
2.2 |
0.54 |
74 |
4.6 |
3.1 |
2.5 |
0.60 |
4.3 |
9.0 |
4.3 |
10.1 |
1.1 |
|
1MC06-018-08/3 |
71 |
2.8 |
2.0 |
2.2 |
0.84 |
74 |
3.0 |
2.0 |
2.5 |
0.94 |
4.3 |
9.0 |
4.3 |
10.1 |
1.4 |
|
1MC06-018-10/3 |
71 |
2.2 |
1.6 |
2.2 |
1.05 |
74 |
2.4 |
1.6 |
2.5 |
1.17 |
4.3 |
9.0 |
4.3 |
10.1 |
1.6 |
|
1MC06-018-12/3 |
71 |
1.9 |
1.4 |
2.2 |
1.25 |
74 |
2.0 |
1.4 |
2.5 |
1.40 |
4.3 |
9.0 |
4.3 |
10.1 |
1.8 |
|
1MC06-018-15/3 |
72 |
1.5 |
1.1 |
2.3 |
1.56 |
74 |
1.6 |
1.1 |
2.5 |
1.75 |
4.3 |
9.0 |
4.3 |
10.1 |
2.1 |
|
1MC06-020-xx |
|||||||||||||||
|
1MC06-020-03 |
67 |
7.4 |
5.0 |
2.5 |
0.37 |
72 |
8.1 |
5.0 |
2.7 |
0.41 |
4.0 |
10.0 |
4.0 |
11.0 |
0.9 |
|
1MC06-020-05 |
69 |
4.7 |
3.1 |
2.5 |
0.60 |
74 |
5.1 |
3.1 |
2.7 |
0.66 |
4.0 |
10.0 |
4.0 |
11.0 |
1.1 |
|
1MC06-020-08 |
71 |
3.1 |
2.0 |
2.5 |
0.94 |
75 |
3.3 |
2.0 |
2.7 |
1.05 |
4.0 |
10.0 |
4.0 |
11.0 |
1.4 |
|
1MC06-020-10 |
71 |
2.5 |
1.6 |
2.5 |
1.17 |
75 |
2.7 |
1.6 |
2.7 |
1.30 |
4.0 |
10.0 |
4.0 |
11.0 |
1.6 |
|
1MC06-020-12 |
71 |
2.1 |
1.4 |
2.5 |
1.39 |
75 |
2.3 |
1.3 |
2.7 |
1.56 |
4.0 |
10.0 |
4.0 |
11.0 |
1.8 |
|
1MC06-020-15 |
72 |
1.7 |
1.1 |
2.5 |
1.74 |
74 |
1.8 |
1.1 |
2.7 |
1.94 |
4.0 |
10.0 |
4.0 |
11.0 |
2.1 |
|
1MC06-021-xx |
|||||||||||||||
|
1MC06-021-03 |
66 |
7.3 |
4.9 |
2.5 |
0.39 |
70 |
8.0 |
4.8 |
2.8 |
0.43 |
6.0 |
7.0 |
6.0 |
8.2 |
1.4 |
|
1MC06-021-05 |
69 |
4.8 |
3.1 |
2.6 |
0.63 |
73 |
5.2 |
3.0 |
2.8 |
0.70 |
6.0 |
7.0 |
6.0 |
8.2 |
1.6 |
|
1MC06-021-08 |
70 |
3.1 |
2.0 |
2.6 |
0.98 |
74 |
3.4 |
2.0 |
2.9 |
1.10 |
6.0 |
7.0 |
6.0 |
8.2 |
1.9 |
|
1MC06-021-10 |
71 |
2.5 |
1.6 |
2.6 |
1.22 |
74 |
2.8 |
1.6 |
2.9 |
1.37 |
6.0 |
7.0 |
6.0 |
8.2 |
2.1 |
|
1MC06-021-12 |
71 |
2.1 |
1.3 |
2.6 |
1.46 |
74 |
2.3 |
1.3 |
2.9 |
1.64 |
6.0 |
7.0 |
6.0 |
8.2 |
2.3 |
|
1MC06-021-15 |
71 |
1.7 |
1.1 |
2.6 |
1.82 |
73 |
1.9 |
1.1 |
2.9 |
2.04 |
6.0 |
7.0 |
6.0 |
8.2 |
2.6 |
|
1MC06-024-xx |
|||||||||||||||
|
1MC06-024-03 |
66 |
8.5 |
4.9 |
2.9 |
0.44 |
70 |
9.2 |
4.9 |
3.2 |
0.49 |
6.0 |
8.0 |
8.0 |
8.0 |
1.4 |
|
1MC06-024-05 |
69 |
5.5 |
3.1 |
3.0 |
0.71 |
73 |
6.0 |
3.1 |
3.2 |
0.80 |
6.0 |
8.0 |
8.0 |
8.0 |
1.6 |
|
1MC06-024-08 |
70 |
3.6 |
2.0 |
3.0 |
1.13 |
74 |
3.9 |
2.0 |
3.3 |
1.26 |
6.0 |
8.0 |
8.0 |
8.0 |
1.9 |
|
1MC06-024-10 |
71 |
2.9 |
1.6 |
3.0 |
1.40 |
74 |
3.2 |
1.6 |
3.3 |
1.56 |
6.0 |
8.0 |
8.0 |
8.0 |
2.1 |
|
1MC06-024-12 |
71 |
2.5 |
1.3 |
3.0 |
1.67 |
74 |
2.7 |
1.3 |
3.3 |
1.87 |
6.0 |
8.0 |
8.0 |
8.0 |
2.3 |
|
1MC06-024-15 |
71 |
2.0 |
1.1 |
3.0 |
2.08 |
73 |
2.2 |
1.1 |
3.3 |
2.33 |
6.0 |
8.0 |
8.0 |
8.0 |
2.6 |
|
1MC06-024-xxH |
|||||||||||||||
|
1MC06-024-05H |
69 |
5.5 |
3.1 |
3.0 |
0.71 |
72 |
6.0 |
3.1 |
3.3 |
0.80 |
8.0 |
8.0 |
8.0 |
8.0 |
1.6 |
|
1MC06-024-08H |
70 |
3.6 |
2.0 |
3.0 |
1.13 |
73 |
3.9 |
2.0 |
3.3 |
1.26 |
8.0 |
8.0 |
8.0 |
8.0 |
1.9 |
|
1MC06-024-10H |
71 |
2.9 |
1.6 |
3.0 |
1.40 |
73 |
3.2 |
1.6 |
3.3 |
1.56 |
8.0 |
8.0 |
8.0 |
8.0 |
2.1 |
|
1MC06-024-12H |
71 |
2.5 |
1.3 |
3.0 |
1.67 |
72 |
2.7 |
1.3 |
3.3 |
1.87 |
8.0 |
8.0 |
8.0 |
8.0 |
2.3 |
|
1MC06-024-15H |
71 |
2.0 |
1.1 |
3.0 |
2.08 |
72 |
2.2 |
1.1 |
3.3 |
2.33 |
8.0 |
8.0 |
8.0 |
8.0 |
2.6 |
|
1MC06-024-xx/1 |
|||||||||||||||
|
1MC06-024-05/1 |
69 |
5.5 |
3.1 |
3.0 |
0.71 |
72 |
6.0 |
3.1 |
3.3 |
0.80 |
8.0 |
8.0 |
8.0 |
8.0 |
1.6 |
|
1MC06-024-08/1 |
70 |
3.6 |
2.0 |
3.0 |
1.13 |
73 |
3.9 |
2.0 |
3.3 |
1.26 |
8.0 |
8.0 |
8.0 |
8.0 |
1.9 |
|
1MC06-024-10/1 |
71 |
2.9 |
1.6 |
3.0 |
1.40 |
73 |
3.2 |
1.6 |
3.3 |
1.56 |
8.0 |
8.0 |
8.0 |
8.0 |
2.1 |
|
1MC06-024-12/1 |
71 |
2.5 |
1.3 |
3.0 |
1.67 |
72 |
2.7 |
1.3 |
3.3 |
1.87 |
8.0 |
8.0 |
8.0 |
8.0 |
2.3 |
|
1MC06-024-15/1 |
71 |
2.0 |
1.1 |
3.0 |
2.08 |
72 |
2.2 |
1.1 |
3.3 |
2.33 |
8.0 |
8.0 |
8.0 |
8.0 |
2.6 |
|
1MC06-024-xx/2 |
|||||||||||||||
|
1MC06-024-03/2 |
67 |
9.0 |
5.1 |
3.0 |
0.44 |
72 |
9.8 |
5.0 |
3.2 |
0.49 |
4.0 |
12.7 |
4.0 |
14.0 |
0.9 |
|
1MC06-024-05/2 |
70 |
5.7 |
3.1 |
3.0 |
0.71 |
74 |
6.2 |
3.1 |
3.3 |
0.80 |
4.0 |
12.7 |
4.0 |
14.0 |
1.1 |
|
1MC06-024-08/2 |
71 |
3.7 |
2.0 |
3.0 |
1.13 |
75 |
4.0 |
2.0 |
3.3 |
1.26 |
4.0 |
12.7 |
4.0 |
14.0 |
1.4 |
|
1MC06-024-10/2 |
71 |
3.0 |
1.6 |
3.0 |
1.40 |
75 |
3.2 |
1.6 |
3.3 |
1.56 |
4.0 |
12.7 |
4.0 |
14.0 |
1.6 |
|
1MC06-024-12/2 |
71 |
2.5 |
1.4 |
3.0 |
1.67 |
74 |
2.7 |
1.3 |
3.3 |
1.87 |
4.0 |
12.7 |
4.0 |
14.0 |
1.8 |
|
1MC06-024-15/2 |
72 |
2.0 |
1.1 |
3.0 |
2.08 |
74 |
2.2 |
1.1 |
3.3 |
2.33 |
4.0 |
12.7 |
4.0 |
14.0 |
2.1 |
|
1MC06-030-xx |
|||||||||||||||
|
1MC06-030-05 |
68 |
6.7 |
3.0 |
3.7 |
0.91 |
72 |
7.3 |
3.0 |
4.0 |
1.01 |
8.0 |
8.0 |
8.0 |
8.0 |
1.6 |
|
1MC06-030-08 |
70 |
4.5 |
2.0 |
3.7 |
1.41 |
73 |
4.8 |
2.0 |
4.1 |
1.57 |
8.0 |
8.0 |
8.0 |
8.0 |
1.9 |
|
1MC06-030-10 |
71 |
3.6 |
1.6 |
3.7 |
1.75 |
74 |
3.9 |
1.6 |
4.1 |
1.95 |
8.0 |
8.0 |
8.0 |
8.0 |
2.1 |
|
1MC06-030-12 |
71 |
3.1 |
1.3 |
3.7 |
2.09 |
73 |
3.3 |
1.3 |
4.1 |
2.34 |
8.0 |
8.0 |
8.0 |
8.0 |
2.3 |
|
1MC06-030-15 |
71 |
2.5 |
1.1 |
3.7 |
2.60 |
73 |
2.7 |
1.1 |
4.1 |
2.91 |
8.0 |
8.0 |
8.0 |
8.0 |
2.6 |
|
1MC06-030-xxH |
|||||||||||||||
|
1MC06-030-05H |
69 |
7.0 |
3.1 |
3.7 |
0.89 |
71 |
7.6 |
3.1 |
4.1 |
1.00 |
10.0 |
10.0 |
10.0 |
10.0 |
1.6 |
|
1MC06-030-08H |
70 |
4.5 |
2.0 |
3.7 |
1.41 |
72 |
5.0 |
2.0 |
4.1 |
1.57 |
10.0 |
10.0 |
10.0 |
10.0 |
1.9 |
|
1MC06-030-10H |
71 |
3.7 |
1.6 |
3.7 |
1.75 |
72 |
4.0 |
1.6 |
4.1 |
1.95 |
10.0 |
10.0 |
10.0 |
10.0 |
2.1 |
|
1MC06-030-12H |
71 |
3.1 |
1.4 |
3.7 |
2.09 |
71 |
3.4 |
1.4 |
4.1 |
2.34 |
10.0 |
10.0 |
10.0 |
10.0 |
2.3 |
|
1MC06-030-15H |
71 |
2.5 |
1.1 |
3.7 |
2.60 |
71 |
2.7 |
1.1 |
4.1 |
2.91 |
10.0 |
10.0 |
10.0 |
10.0 |
2.6 |
|
1MC06-037-xx |
|||||||||||||||
|
1MC06-037-03 |
67 |
14.0 |
5.1 |
4.6 |
0.68 |
71 |
15.3 |
5.0 |
5.0 |
0.76 |
8.0 |
12.6 |
8.0 |
13.6 |
0.9 |
|
1MC06-037-05 |
70 |
8.8 |
3.2 |
4.6 |
1.10 |
73 |
9.6 |
3.1 |
5.1 |
1.23 |
8.0 |
12.6 |
8.0 |
13.6 |
1.1 |
|
1MC06-037-08 |
71 |
5.7 |
2.0 |
4.6 |
1.73 |
74 |
6.2 |
2.0 |
5.1 |
1.94 |
8.0 |
12.6 |
8.0 |
13.6 |
1.4 |
|
1MC06-037-10 |
71 |
4.6 |
1.6 |
4.6 |
2.16 |
74 |
5.0 |
1.6 |
5.1 |
2.41 |
8.0 |
12.6 |
8.0 |
13.6 |
1.6 |
|
1MC06-037-12 |
71 |
3.8 |
1.4 |
4.6 |
2.58 |
73 |
4.2 |
1.4 |
5.1 |
2.88 |
8.0 |
12.6 |
8.0 |
13.6 |
1.8 |
|
1MC06-037-15 |
71 |
3.1 |
1.1 |
4.6 |
3.21 |
73 |
3.4 |
1.1 |
5.1 |
3.59 |
8.0 |
12.6 |
8.0 |
13.6 |
2.1 |
|
1MC06-039-xxH |
|||||||||||||||
|
1MC06-039-05H |
69 |
9.1 |
3.1 |
4.8 |
1.16 |
71 |
10.0 |
3.1 |
5.3 |
1.29 |
12.0 |
12.0 |
12.0 |
12.0 |
1.6 |
|
1MC06-039-08H |
70 |
5.9 |
2.0 |
4.9 |
1.83 |
72 |
6.5 |
2.0 |
5.3 |
2.04 |
12.0 |
12.0 |
12.0 |
12.0 |
1.9 |
|
1MC06-039-10H |
71 |
4.8 |
1.6 |
4.9 |
2.27 |
71 |
5.3 |
1.6 |
5.3 |
2.54 |
12.0 |
12.0 |
12.0 |
12.0 |
2.1 |
|
1MC06-039-12H |
71 |
4.0 |
1.4 |
4.9 |
2.72 |
71 |
4.4 |
1.4 |
5.4 |
3.04 |
12.0 |
12.0 |
12.0 |
12.0 |
2.3 |
|
1MC06-039-15H |
71 |
3.3 |
1.1 |
4.9 |
3.39 |
70 |
3.6 |
1.1 |
5.4 |
3.78 |
12.0 |
12.0 |
12.0 |
12.0 |
2.6 |
|
1MC06-046-xx |
|||||||||||||||
|
1MC06-046-05 |
68 |
10.4 |
3.1 |
5.6 |
1.37 |
73 |
11.3 |
3.0 |
6.2 |
1.53 |
8.0 |
12.0 |
8.0 |
12.0 |
1.6 |
|
1MC06-046-08 |
70 |
6.8 |
2.0 |
5.7 |
2.16 |
74 |
7.4 |
2.0 |
6.2 |
2.41 |
8.0 |
12.0 |
8.0 |
12.0 |
1.9 |
|
1MC06-046-10 |
71 |
5.5 |
1.6 |
5.7 |
2.68 |
74 |
6.0 |
1.6 |
6.3 |
2.99 |
8.0 |
12.0 |
8.0 |
12.0 |
2.1 |
|
1MC06-046-12 |
71 |
4.7 |
1.3 |
5.7 |
3.21 |
74 |
5.1 |
1.3 |
6.3 |
3.58 |
8.0 |
12.0 |
8.0 |
12.0 |
2.3 |
|
1MC06-046-15 |
71 |
3.8 |
1.1 |
5.7 |
3.99 |
74 |
4.1 |
1.1 |
6.3 |
4.46 |
8.0 |
12.0 |
8.0 |
12.0 |
2.6 |
|
1MC06-048-xx |
|||||||||||||||
|
1MC06-048-05 |
68 |
10.8 |
3.1 |
5.9 |
1.43 |
73 |
11.8 |
3.0 |
6.5 |
1.59 |
10.0 |
10.0 |
10.0 |
10.0 |
1.6 |
|
1MC06-048-08 |
70 |
7.1 |
2.0 |
5.9 |
2.25 |
74 |
7.7 |
2.0 |
6.5 |
2.51 |
10.0 |
10.0 |
10.0 |
10.0 |
1.9 |
|
1MC06-048-10 |
71 |
5.8 |
1.6 |
5.9 |
2.80 |
74 |
6.3 |
1.6 |
6.5 |
3.13 |
10.0 |
10.0 |
10.0 |
10.0 |
2.1 |
|
1MC06-048-12 |
71 |
4.9 |
1.3 |
6.0 |
3.35 |
74 |
5.3 |
1.3 |
6.6 |
3.74 |
10.0 |
10.0 |
10.0 |
10.0 |
2.3 |
|
1MC06-048-15 |
71 |
4.0 |
1.1 |
6.0 |
4.17 |
74 |
4.3 |
1.1 |
6.6 |
4.66 |
10.0 |
10.0 |
10.0 |
10.0 |
2.6 |
|
1MC06-048-xx/1 |
|||||||||||||||
|
1MC06-048-03/1 |
67 |
17.9 |
5.0 |
5.9 |
0.88 |
72 |
19.5 |
5.0 |
6.5 |
0.98 |
8.0 |
12.6 |
8.0 |
13.6 |
0.9 |
|
1MC06-048-05/1 |
70 |
11.3 |
3.1 |
5.9 |
1.43 |
74 |
12.4 |
3.1 |
6.5 |
1.59 |
8.0 |
12.6 |
8.0 |
13.6 |
1.1 |
|
1MC06-048-08/1 |
71 |
7.3 |
2.0 |
6.0 |
2.25 |
75 |
8.0 |
2.0 |
6.6 |
2.51 |
8.0 |
12.6 |
8.0 |
13.6 |
1.4 |
|
1MC06-048-10/1 |
71 |
5.9 |
1.6 |
6.0 |
2.80 |
75 |
6.5 |
1.6 |
6.6 |
3.13 |
8.0 |
12.6 |
8.0 |
13.6 |
1.6 |
|
1MC06-048-12/1 |
71 |
5.0 |
1.4 |
6.0 |
3.35 |
75 |
5.4 |
1.3 |
6.6 |
3.74 |
8.0 |
12.6 |
8.0 |
13.6 |
1.8 |
|
1MC06-048-15/1 |
72 |
4.0 |
1.1 |
6.0 |
4.17 |
74 |
4.4 |
1.1 |
6.6 |
4.66 |
8.0 |
12.6 |
8.0 |
13.6 |
2.1 |
|
1MC06-050-xx |
|||||||||||||||
|
1MC06-050-03 |
66 |
17.5 |
4.9 |
6.1 |
0.92 |
70 |
19.0 |
4.8 |
6.6 |
1.02 |
10.0 |
10.0 |
12.0 |
10.0 |
1.4 |
|
1MC06-050-05 |
69 |
11.4 |
3.1 |
6.1 |
1.49 |
73 |
12.4 |
3.0 |
6.7 |
1.66 |
10.0 |
10.0 |
12.0 |
10.0 |
1.6 |
|
1MC06-050-08 |
70 |
7.4 |
2.0 |
6.2 |
2.34 |
74 |
8.1 |
2.0 |
6.8 |
2.62 |
10.0 |
10.0 |
12.0 |
10.0 |
1.9 |
|
1MC06-050-10 |
71 |
6.1 |
1.6 |
6.2 |
2.91 |
74 |
6.6 |
1.6 |
6.8 |
3.26 |
10.0 |
10.0 |
12.0 |
10.0 |
2.1 |
|
1MC06-050-12 |
71 |
5.1 |
1.3 |
6.2 |
3.48 |
74 |
5.6 |
1.3 |
6.8 |
3.89 |
10.0 |
10.0 |
12.0 |
10.0 |
2.3 |
|
1MC06-050-15 |
71 |
4.1 |
1.1 |
6.2 |
4.34 |
74 |
4.5 |
1.1 |
6.8 |
4.85 |
10.0 |
10.0 |
12.0 |
10.0 |
2.6 |
|
1MC06-060-xx |
|||||||||||||||
|
1MC06-060-03 |
66 |
21.0 |
4.9 |
7.3 |
1.10 |
70 |
22.8 |
4.8 |
8.0 |
1.23 |
10.0 |
12.0 |
12.0 |
12.0 |
1.4 |
|
1MC06-060-05 |
69 |
13.6 |
3.1 |
7.4 |
1.79 |
73 |
14.8 |
3.0 |
8.1 |
1.99 |
10.0 |
12.0 |
12.0 |
12.0 |
1.6 |
|
1MC06-060-08 |
70 |
8.9 |
2.0 |
7.4 |
2.81 |
74 |
9.7 |
2.0 |
8.2 |
3.14 |
10.0 |
12.0 |
12.0 |
12.0 |
1.9 |
|
1MC06-060-10 |
71 |
7.3 |
1.6 |
7.5 |
3.50 |
74 |
7.9 |
1.6 |
8.2 |
3.91 |
10.0 |
12.0 |
12.0 |
12.0 |
2.1 |
|
1MC06-060-12 |
71 |
6.1 |
1.3 |
7.5 |
4.18 |
74 |
6.7 |
1.3 |
8.2 |
4.67 |
10.0 |
12.0 |
12.0 |
12.0 |
2.3 |
|
1MC06-060-15 |
71 |
4.9 |
1.1 |
7.5 |
5.21 |
74 |
5.4 |
1.1 |
8.2 |
5.82 |
10.0 |
12.0 |
12.0 |
12.0 |
2.6 |
|
1MC06-070-xx |
|||||||||||||||
|
1MC06-070-05 |
68 |
15.8 |
3.1 |
8.6 |
2.08 |
73 |
17.2 |
3.0 |
9.4 |
2.32 |
12.0 |
12.0 |
12.0 |
12.0 |
1.6 |
|
1MC06-070-08 |
70 |
10.4 |
2.0 |
8.6 |
3.28 |
74 |
11.3 |
2.0 |
9.5 |
3.66 |
12.0 |
12.0 |
12.0 |
12.0 |
1.9 |
|
1MC06-070-10 |
71 |
8.4 |
1.6 |
8.7 |
4.08 |
74 |
9.2 |
1.6 |
9.5 |
4.56 |
12.0 |
12.0 |
12.0 |
12.0 |
2.1 |
|
1MC06-070-12 |
71 |
7.1 |
1.3 |
8.7 |
4.88 |
74 |
7.8 |
1.3 |
9.6 |
5.45 |
12.0 |
12.0 |
12.0 |
12.0 |
2.3 |
|
1MC06-070-15 |
71 |
5.8 |
1.1 |
8.7 |
6.08 |
74 |
6.3 |
1.1 |
9.6 |
6.79 |
12.0 |
12.0 |
12.0 |
12.0 |
2.6 |
|
1MC06-072-xx |
|||||||||||||||
|
1MC06-072-03 |
66 |
25.1 |
4.9 |
8.7 |
1.32 |
70 |
27.3 |
4.8 |
9.5 |
1.47 |
12.0 |
12.0 |
14.0 |
12.0 |
1.4 |
|
1MC06-072-05 |
69 |
16.3 |
3.1 |
8.8 |
2.14 |
73 |
17.8 |
3.0 |
9.7 |
2.39 |
12.0 |
12.0 |
14.0 |
12.0 |
1.6 |
|
1MC06-072-08 |
70 |
10.7 |
2.0 |
8.9 |
3.38 |
74 |
11.7 |
2.0 |
9.8 |
3.77 |
12.0 |
12.0 |
14.0 |
12.0 |
1.9 |
|
1MC06-072-10 |
71 |
8.7 |
1.6 |
8.9 |
4.20 |
74 |
9.5 |
1.6 |
9.8 |
4.69 |
12.0 |
12.0 |
14.0 |
12.0 |
2.1 |
|
1MC06-072-12 |
71 |
7.3 |
1.3 |
8.9 |
5.02 |
74 |
8.0 |
1.3 |
9.8 |
5.61 |
12.0 |
12.0 |
14.0 |
12.0 |
2.3 |
|
1MC06-072-15 |
71 |
5.9 |
1.1 |
9.0 |
6.25 |
74 |
6.5 |
1.1 |
9.8 |
6.99 |
12.0 |
12.0 |
14.0 |
12.0 |
2.6 |
|
1MC06-096-xx |
|||||||||||||||
|
1MC06-096-03 |
66 |
33.7 |
4.9 |
11.6 |
1.75 |
70 |
36.6 |
4.8 |
12.7 |
1.95 |
12.0 |
16.0 |
14.0 |
16.0 |
1.4 |
|
1MC06-096-05 |
69 |
21.9 |
3.1 |
11.8 |
2.84 |
73 |
23.8 |
3.0 |
12.9 |
3.17 |
12.0 |
16.0 |
14.0 |
16.0 |
1.6 |
|
1MC06-096-08 |
70 |
14.3 |
2.0 |
11.9 |
4.49 |
74 |
15.6 |
2.0 |
13.1 |
5.01 |
12.0 |
16.0 |
14.0 |
16.0 |
1.9 |
|
1MC06-096-10 |
71 |
11.6 |
1.6 |
11.9 |
5.58 |
75 |
12.6 |
1.6 |
13.1 |
6.24 |
12.0 |
16.0 |
14.0 |
16.0 |
2.1 |
|
1MC06-096-12 |
71 |
9.8 |
1.3 |
11.9 |
6.68 |
75 |
10.7 |
1.3 |
13.1 |
7.46 |
12.0 |
16.0 |
14.0 |
16.0 |
2.3 |
|
1MC06-096-15 |
71 |
7.9 |
1.1 |
11.9 |
8.32 |
74 |
8.6 |
1.1 |
13.1 |
9.30 |
12.0 |
16.0 |
14.0 |
16.0 |
2.6 |
|
1MC06-098-xxH |
|||||||||||||||
|
1MC06-098-03H |
68 |
38.5 |
5.2 |
12.2 |
1.79 |
73 |
42.0 |
5.2 |
13.4 |
1.99 |
15.0 |
15.0 |
16.5 |
15.0 |
1.4 |
|
1MC06-098-05H |
70 |
23.9 |
3.2 |
12.2 |
2.90 |
75 |
26.1 |
3.2 |
13.4 |
3.24 |
15.0 |
15.0 |
15.0 |
15.0 |
1.6 |
|
1MC06-098-08H |
71 |
15.2 |
2.0 |
12.2 |
4.58 |
75 |
16.6 |
2.0 |
13.5 |
5.11 |
15.0 |
15.0 |
15.0 |
15.0 |
1.9 |
|
1MC06-098-10H |
72 |
12.3 |
1.6 |
12.2 |
5.70 |
75 |
13.4 |
1.6 |
13.5 |
6.37 |
15.0 |
15.0 |
15.0 |
15.0 |
2.1 |
|
1MC06-098-12H |
72 |
10.3 |
1.4 |
12.2 |
6.81 |
75 |
11.2 |
1.4 |
13.4 |
7.62 |
15.0 |
15.0 |
15.0 |
15.0 |
2.3 |
|
1MC06-098-15H |
72 |
8.3 |
1.1 |
12.2 |
8.49 |
74 |
9.0 |
1.1 |
13.5 |
9.49 |
15.0 |
15.0 |
15.0 |
15.0 |
2.6 |
|
1MC06-103-xx |
|||||||||||||||
|
1MC06-103-05 |
69 |
23.3 |
3.1 |
12.6 |
3.05 |
73 |
25.3 |
3.0 |
13.9 |
3.40 |
14.0 |
15.0 |
14.0 |
15.0 |
1.6 |
|
1MC06-103-08 |
70 |
15.3 |
2.0 |
12.7 |
4.81 |
74 |
16.6 |
2.0 |
14.0 |
5.37 |
14.0 |
15.0 |
14.0 |
15.0 |
1.9 |
|
1MC06-103-10 |
71 |
12.4 |
1.6 |
12.7 |
5.99 |
74 |
13.5 |
1.6 |
14.0 |
6.69 |
14.0 |
15.0 |
14.0 |
15.0 |
2.1 |
|
1MC06-103-12 |
71 |
10.5 |
1.3 |
12.8 |
7.16 |
74 |
11.4 |
1.3 |
14.1 |
8.00 |
14.0 |
15.0 |
14.0 |
15.0 |
2.3 |
|
1MC06-103-15 |
71 |
8.5 |
1.1 |
12.8 |
8.92 |
74 |
9.2 |
1.1 |
14.1 |
9.98 |
14.0 |
15.0 |
14.0 |
15.0 |
2.6 |
|
1MC06-105-xx |
|||||||||||||||
|
1MC06-105-03 |
66 |
36.8 |
4.9 |
12.7 |
1.91 |
70 |
39.9 |
4.8 |
13.9 |
2.13 |
14.0 |
15.0 |
16.0 |
15.0 |
1.4 |
|
1MC06-105-05 |
69 |
23.9 |
3.1 |
12.9 |
3.11 |
73 |
26.0 |
3.0 |
14.1 |
3.47 |
14.0 |
15.0 |
16.0 |
15.0 |
1.6 |
|
1MC06-105-08 |
70 |
15.7 |
2.0 |
13.0 |
4.91 |
74 |
17.0 |
2.0 |
14.3 |
5.48 |
14.0 |
15.0 |
16.0 |
15.0 |
1.9 |
|
1MC06-105-10 |
71 |
12.7 |
1.6 |
13.0 |
6.10 |
75 |
13.8 |
1.6 |
14.3 |
6.82 |
14.0 |
15.0 |
16.0 |
15.0 |
2.1 |
|
1MC06-105-12 |
71 |
10.7 |
1.3 |
13.0 |
7.30 |
75 |
11.7 |
1.3 |
14.3 |
8.16 |
14.0 |
15.0 |
16.0 |
15.0 |
2.3 |
|
1MC06-105-15 |
71 |
8.7 |
1.1 |
13.1 |
9.10 |
74 |
9.4 |
1.1 |
14.3 |
10.17 |
14.0 |
15.0 |
16.0 |
15.0 |
2.6 |
|
1MC06-126-xx |
|||||||||||||||
|
1MC06-126-03 |
66 |
43.9 |
4.9 |
15.3 |
2.32 |
70 |
47.7 |
4.8 |
16.7 |
2.57 |
16.0 |
16.0 |
18.0 |
16.0 |
1.4 |
|
1MC06-126-05 |
68 |
28.4 |
3.1 |
15.4 |
3.75 |
73 |
30.8 |
3.0 |
16.9 |
4.18 |
16.0 |
16.0 |
16.0 |
16.0 |
1.6 |
|
1MC06-126-08 |
70 |
18.7 |
2.0 |
15.6 |
5.91 |
74 |
20.3 |
2.0 |
17.1 |
6.59 |
16.0 |
16.0 |
16.0 |
16.0 |
1.9 |
|
1MC06-126-10 |
71 |
15.2 |
1.6 |
15.6 |
7.34 |
74 |
16.5 |
1.6 |
17.2 |
8.20 |
16.0 |
16.0 |
16.0 |
16.0 |
2.1 |
|
1MC06-126-12 |
71 |
12.8 |
1.3 |
15.7 |
8.78 |
74 |
13.9 |
1.3 |
17.1 |
9.81 |
16.0 |
16.0 |
16.0 |
16.0 |
2.3 |
|
1MC06-126-15 |
71 |
10.4 |
1.1 |
15.7 |
10.94 |
74 |
11.3 |
1.1 |
17.2 |
12.23 |
16.0 |
16.0 |
16.0 |
16.0 |
2.6 |
|
1MC06-142-xx |
|||||||||||||||
|
1MC06-142-03 |
65 |
49.4 |
4.9 |
17.2 |
2.61 |
70 |
53.6 |
4.8 |
18.8 |
2.90 |
12.0 |
24.0 |
12.0 |
26.5 |
1.4 |
|
1MC06-142-05 |
68 |
32.0 |
3.1 |
17.4 |
4.23 |
73 |
34.7 |
3.0 |
19.1 |
4.71 |
12.0 |
24.0 |
12.0 |
24.0 |
1.6 |
|
1MC06-142-08 |
70 |
21.0 |
2.0 |
17.5 |
6.66 |
74 |
22.9 |
2.0 |
19.3 |
7.43 |
12.0 |
24.0 |
12.0 |
24.0 |
1.9 |
|
1MC06-142-10 |
71 |
17.1 |
1.6 |
17.6 |
8.28 |
74 |
18.6 |
1.6 |
19.3 |
9.25 |
12.0 |
24.0 |
12.0 |
24.0 |
2.1 |
|
1MC06-142-12 |
71 |
14.4 |
1.3 |
17.7 |
9.90 |
75 |
15.7 |
1.3 |
19.3 |
11.06 |
12.0 |
24.0 |
12.0 |
24.0 |
2.3 |
|
1MC06-142-15 |
71 |
11.7 |
1.1 |
17.7 |
12.33 |
74 |
12.7 |
1.1 |
19.4 |
13.78 |
12.0 |
24.0 |
12.0 |
24.0 |
2.6 |

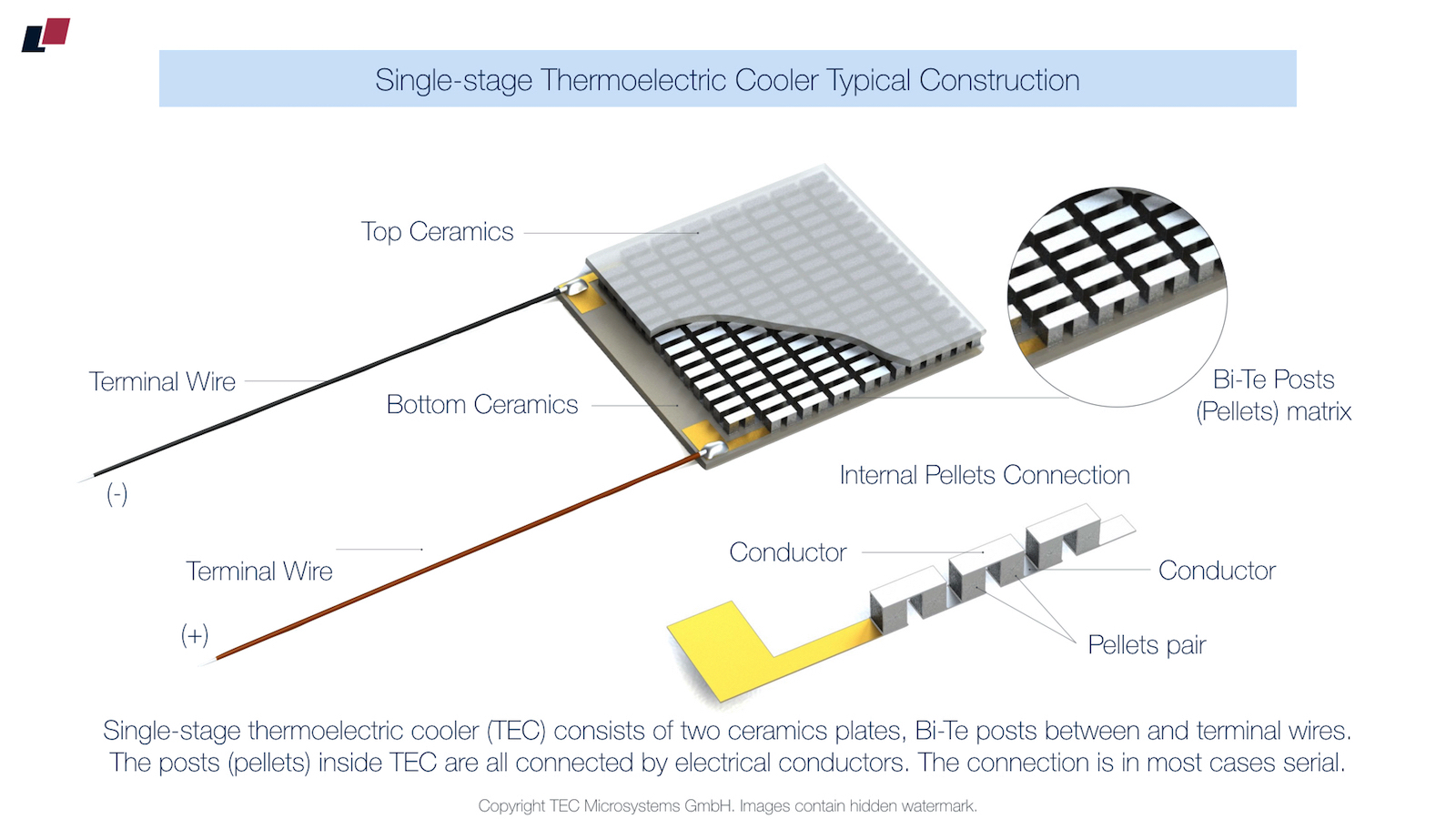

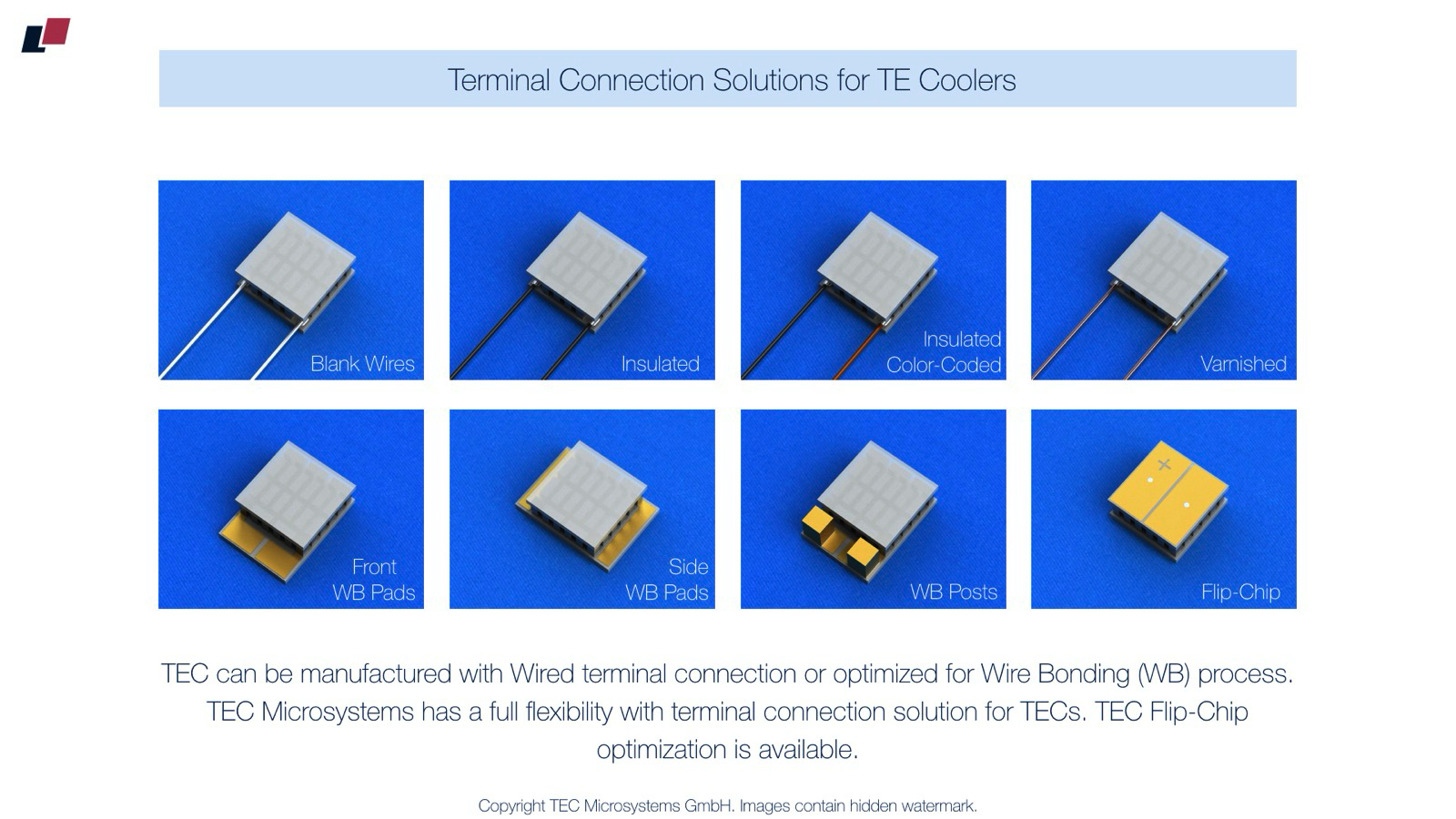

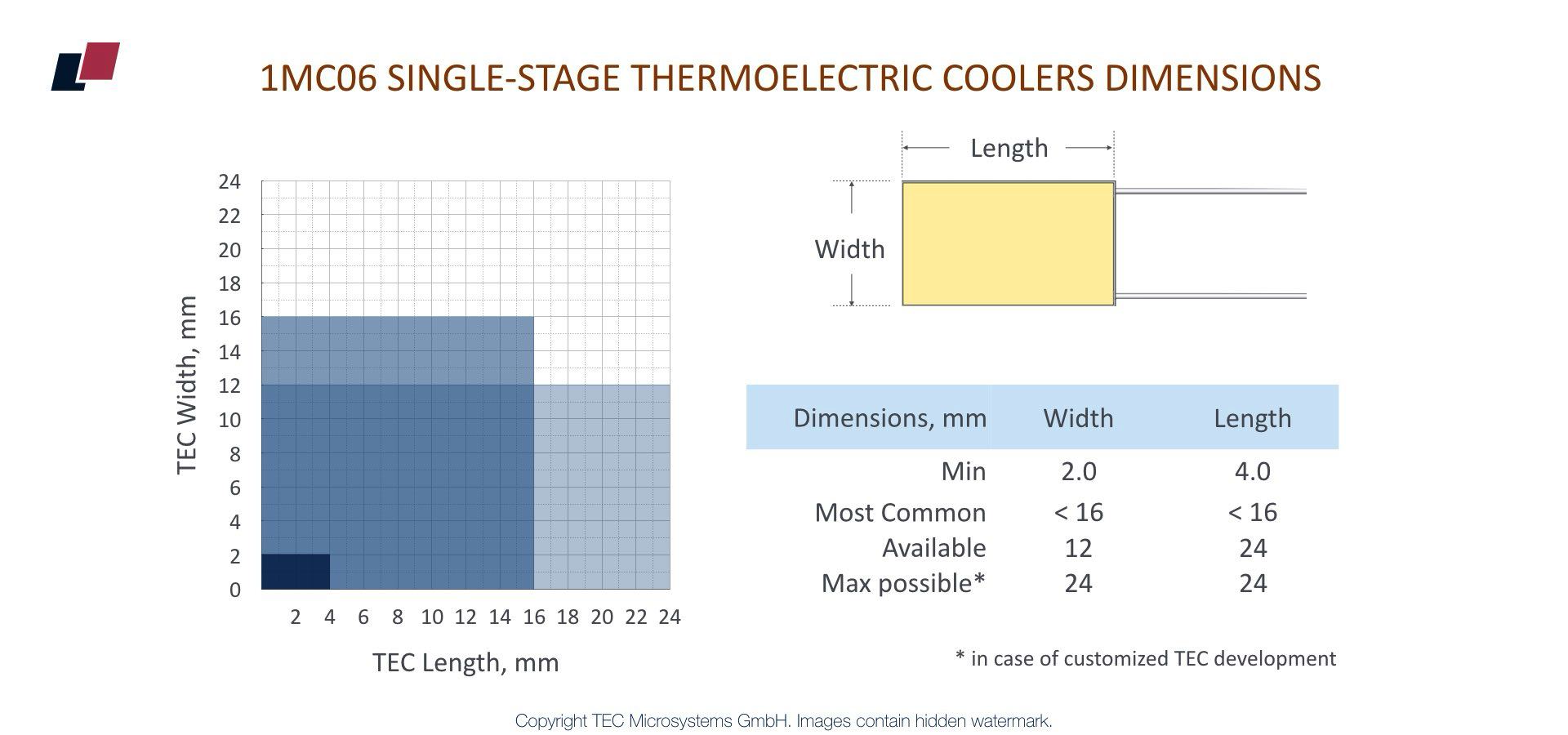

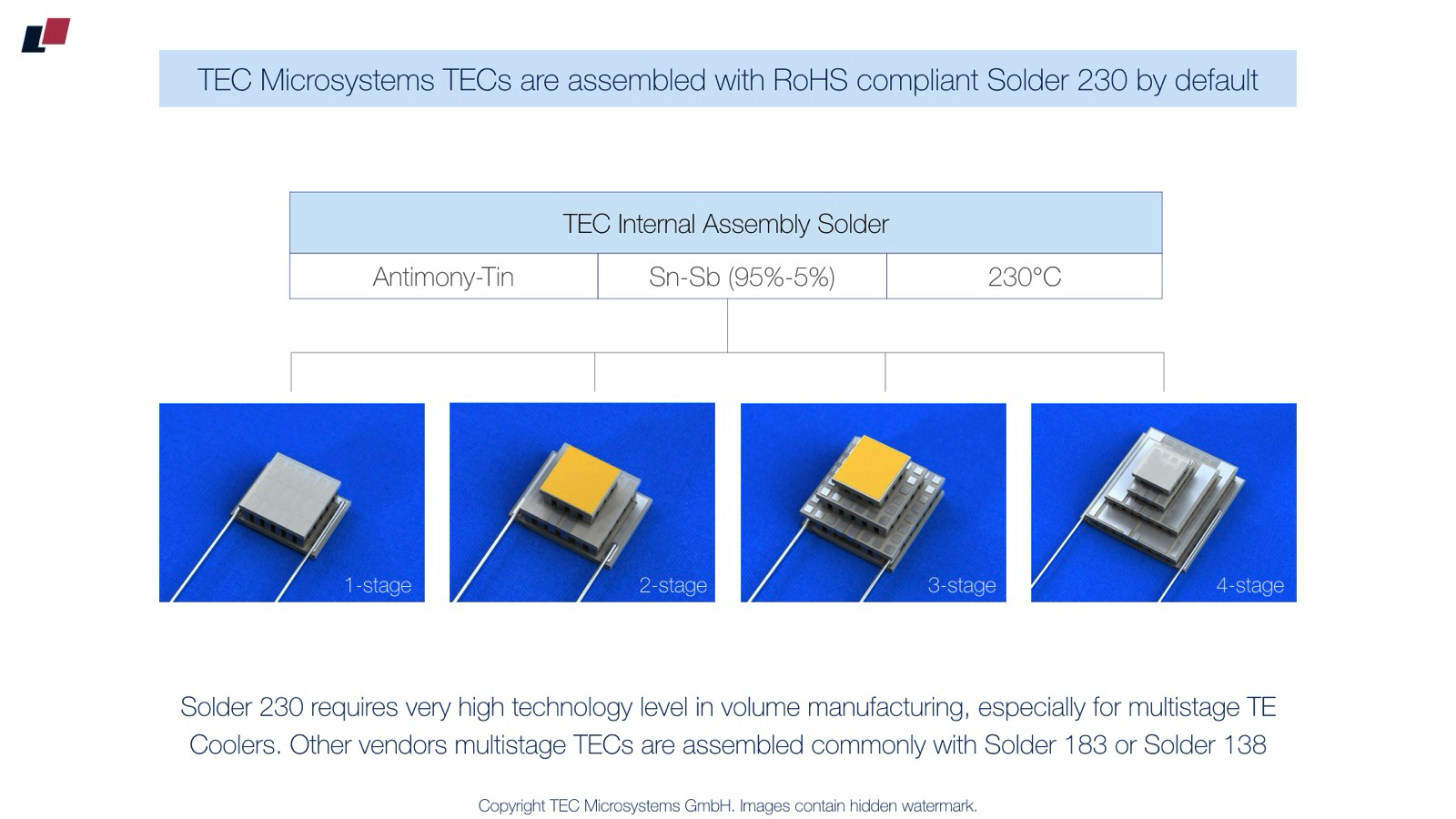

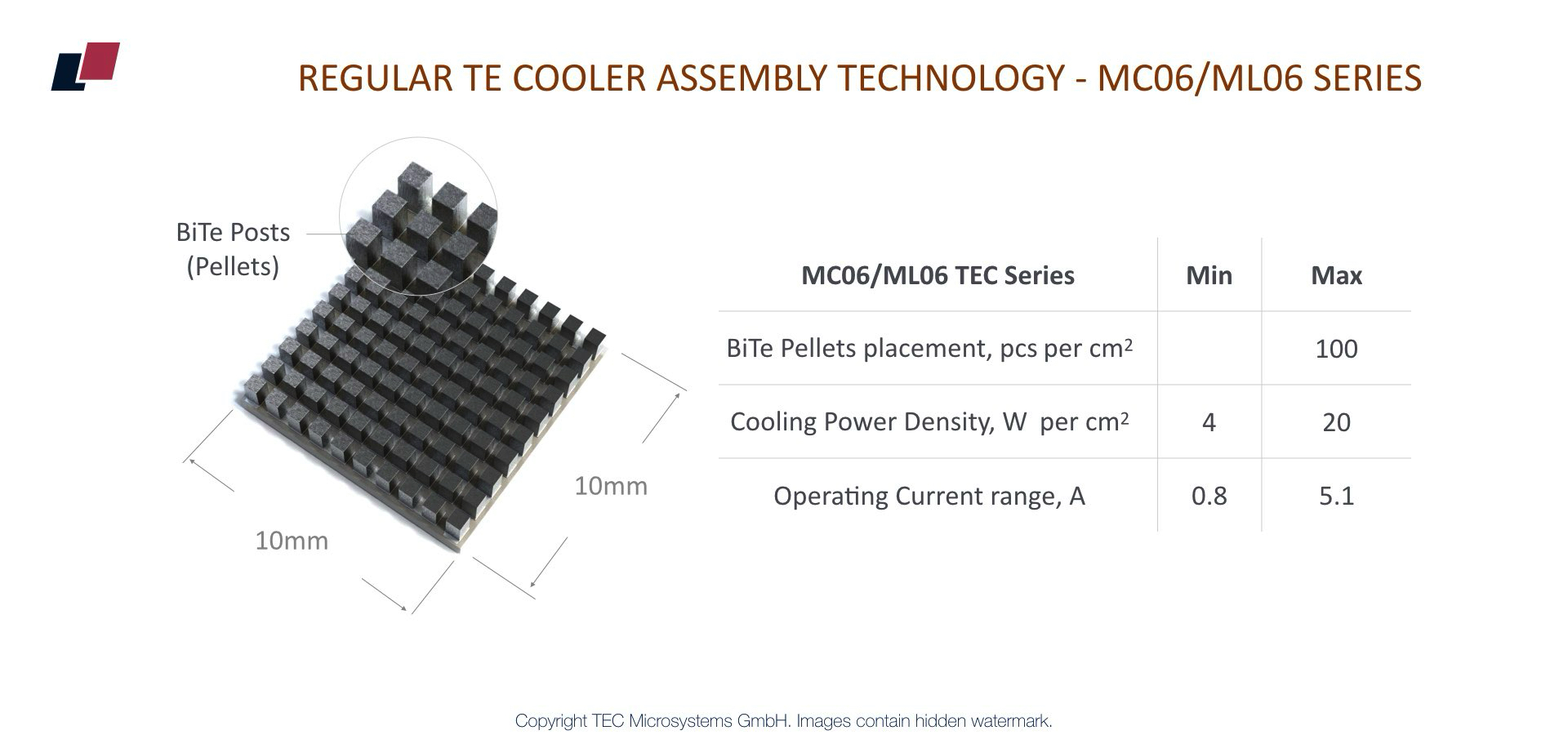

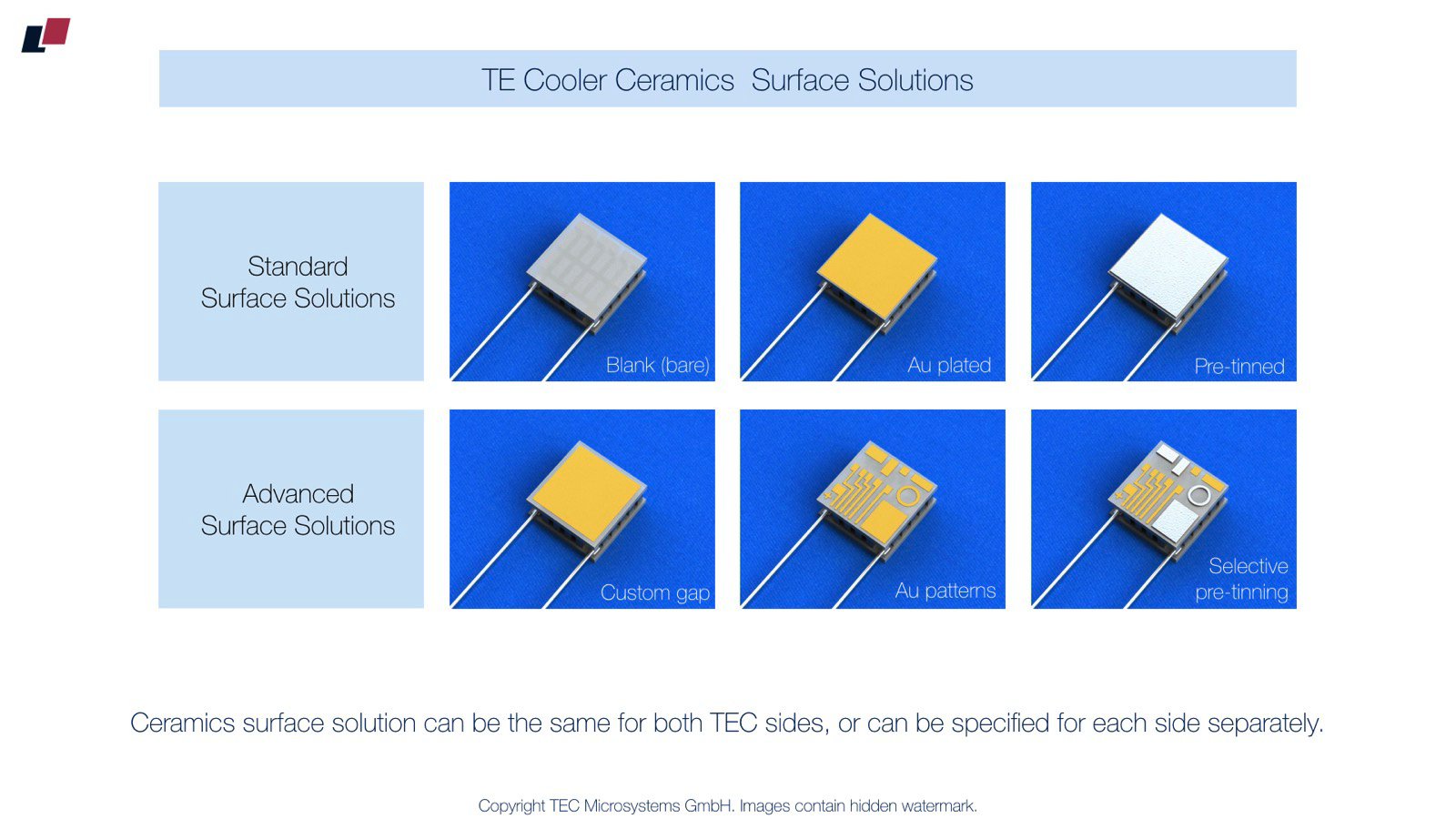

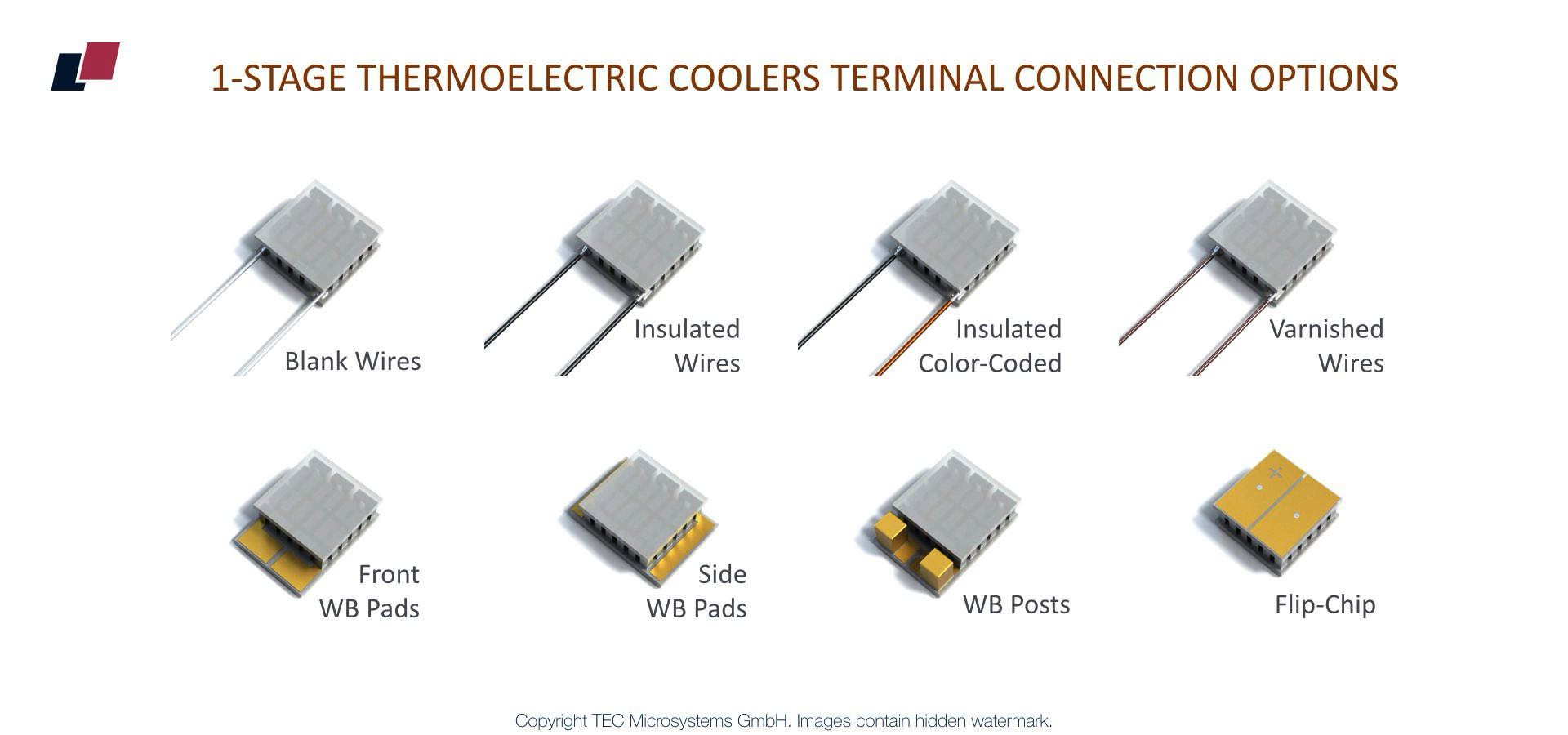

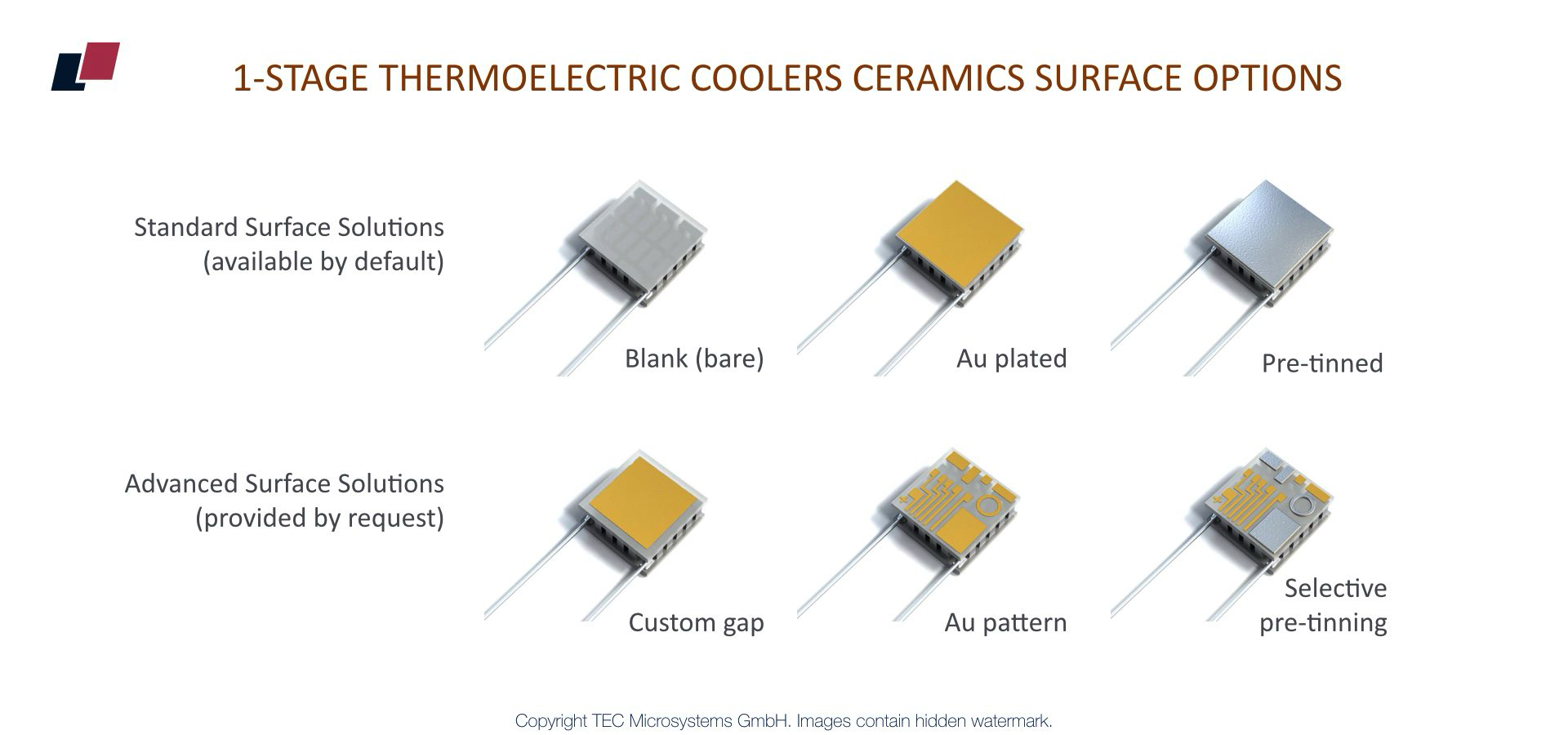

Thermoelectric coolers of MC06 Series represent our solid and reliable "classic" TECs. MC06 Series is based on regular TEC assembly technology with ~100elements/cm2 pellets placement density. Single-stage thermoelectric cooler dimensions in MC06 Series vary from 2.0 x 4.0mm2 up to 16.0 x 16.0mm2 (or 12.0 x 24.0mm2). MC06 TEC Series is universal by application focus with many surface options and terminal connection configurations. All thermoelectric coolers are assembled using RoHS compliant Sn-Sb solder with a melting temperature Tmelt=230ºC. Thermoelectric coolers of MC06 Series meet Telcordia GR-486 standard requirements. Wide range of TEC manufacturing options is available. The standard and most common single-stage types from our MC06 Series are listed in the table below. Detailed TEC drawings, 3D models, performance plots and estimations for particular application conditions are provided by request.
1MC06 TE COOLERS ADVANTAGES
1MC06 TE COOLERS KEY FEATURES
◻︎ "Classic" regular assembly technology
◻ Dimensions from 2x4mm2 up to 12x24mm2
◻ Wide range of standard TEC types available

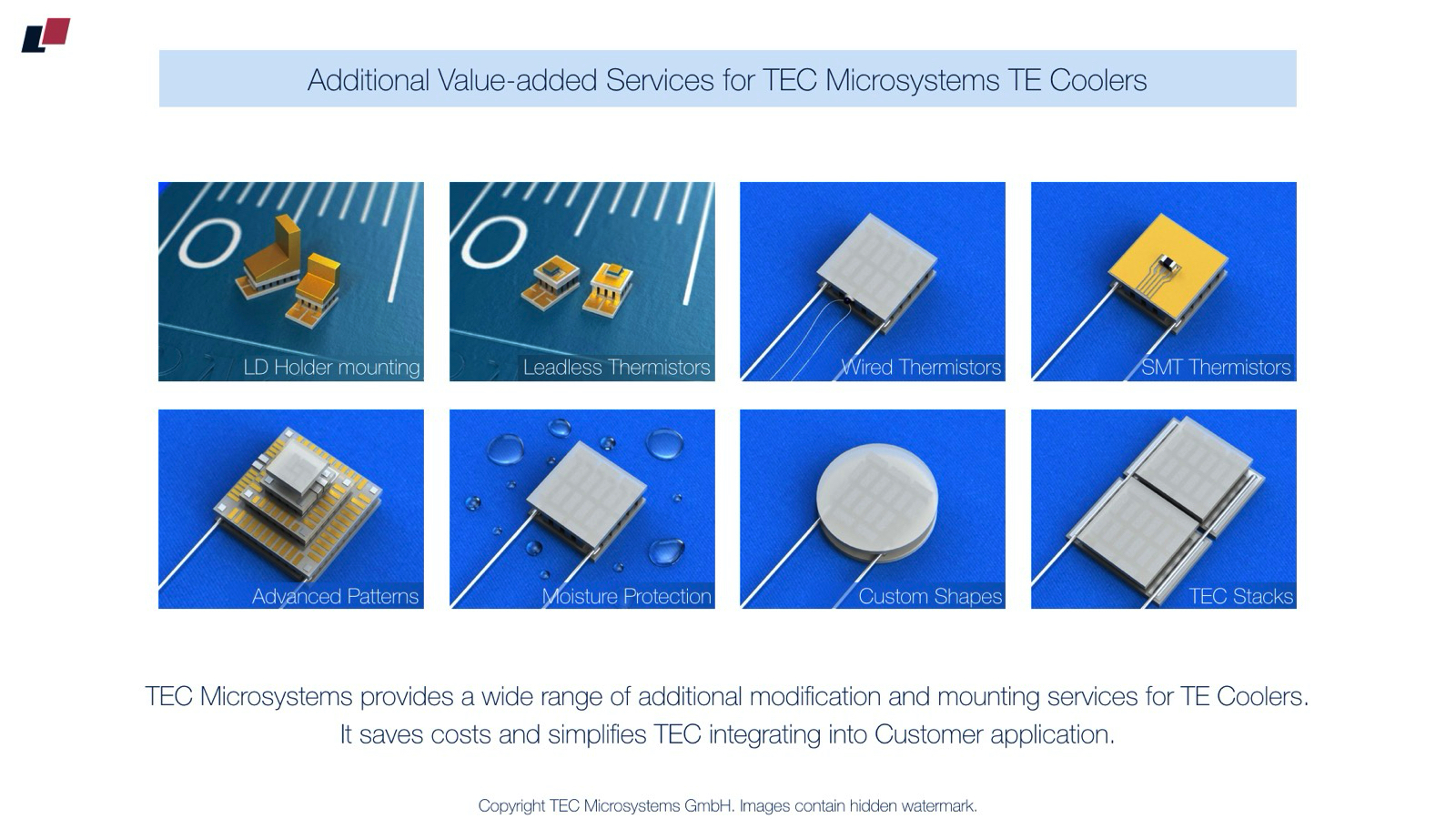

◻ Wide range of manufacturing options available
◻ High-quality bulk BiTe material
◻ Accurate steam soldering technology
◻ RoHS compliant TE Coolers by default
◻ Telcordia GR-468 qualified TECs
1MC06
Single-stage
TE Coolers
