TEC Microsystems - Miniature Thermoelectric Coolers and Sub-Assemblies



Performance @27ºC, Vacuum

Performance @50ºC, Dry N2

Cold Side

Hot Side

Height

TEC TYPE

dTmax

Qmax

Imax

Umax

ACR

dTmax

Qmax

Imax

Umax

ACR

A

B

C

D

H


K

W

A

V

Ohm

K

W

A

V

Ohm

mm

mm

mm

mm

mm

3MDC10-071-xxAN

3MDC10-071-05AN

101

4.1

5.3

5.3

0.84

101

5.0

5.5

6.0

0.93

12.0

12.0

12.0

12.0

3.8

3MDC10-071-08AN

105

2.8

3.6

5.4

1.28

100

3.4

3.8

6.2

1.42

12.0

12.0

12.0

12.0

4.7

3MDC10-071-10AN

107

2.3

3.0

5.5

1.57

98

2.8

3.1

6.3

1.75

12.0

12.0

12.0

12.0

5.3

3MDC10-071-15AN

108

1.7

2.1

5.6

2.30

93

1.9

2.2

6.4

2.56

12.0

12.0

12.0

12.0

6.8

3MDC10-071-20AN

107

1.3

1.6

5.7

3.03

87

1.5

1.7

6.5

3.38

12.0

12.0

12.0

12.0

8.3

3MDC10-113-xxAN

3MDC10-113-05AN

100

7.8

5.2

8.0

1.33

103

9.2

5.3

9.0

1.47

15.0

15.0

15.0

15.0

3.8

3MDC10-113-08AN

104

5.2

3.5

8.2

2.03

103

6.2

3.6

9.2

2.25

15.0

15.0

15.0

15.0

4.7

3MDC10-113-10AN

105

4.3

2.9

8.3

2.49

102

5.1

3.0

9.3

2.77

15.0

15.0

15.0

15.0

5.3

3MDC10-113-15AN

106

3.0

2.0

8.4

3.65

98

3.5

2.1

9.4

4.07

15.0

15.0

15.0

15.0

6.8

3MDC10-113-20AN

106

2.3

1.5

8.4

4.81

93

2.7

1.6

9.5

5.37

15.0

15.0

15.0

15.0

8.3

3MDC10-155-xxAN

3MDC10-155-05AN

99

11.2

5.1

10.9

1.82

104

13.0

5.2

12.1

2.01

17.0

17.0

17.0

17.0

3.8

3MDC10-155-08AN

103

7.5

3.4

11.1

2.78

104

8.7

3.5

12.4

3.08

17.0

17.0

17.0

17.0

4.7

3MDC10-155-10AN

105

6.1

2.8

11.2

3.41

103

7.2

2.9

12.5

3.80

17.0

17.0

17.0

17.0

5.3

3MDC10-155-15AN

106

4.2

2.0

11.3

5.01

100

4.9

2.0

12.7

5.58

17.0

17.0

17.0

17.0

6.8

3MDC10-155-20AN

106

3.2

1.5

11.4

6.60

95

3.8

1.6

12.8

7.36

17.0

17.0

17.0

17.0

8.3

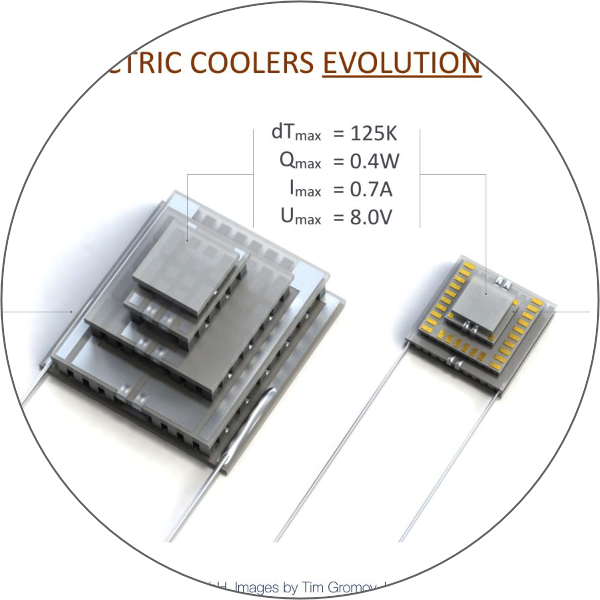

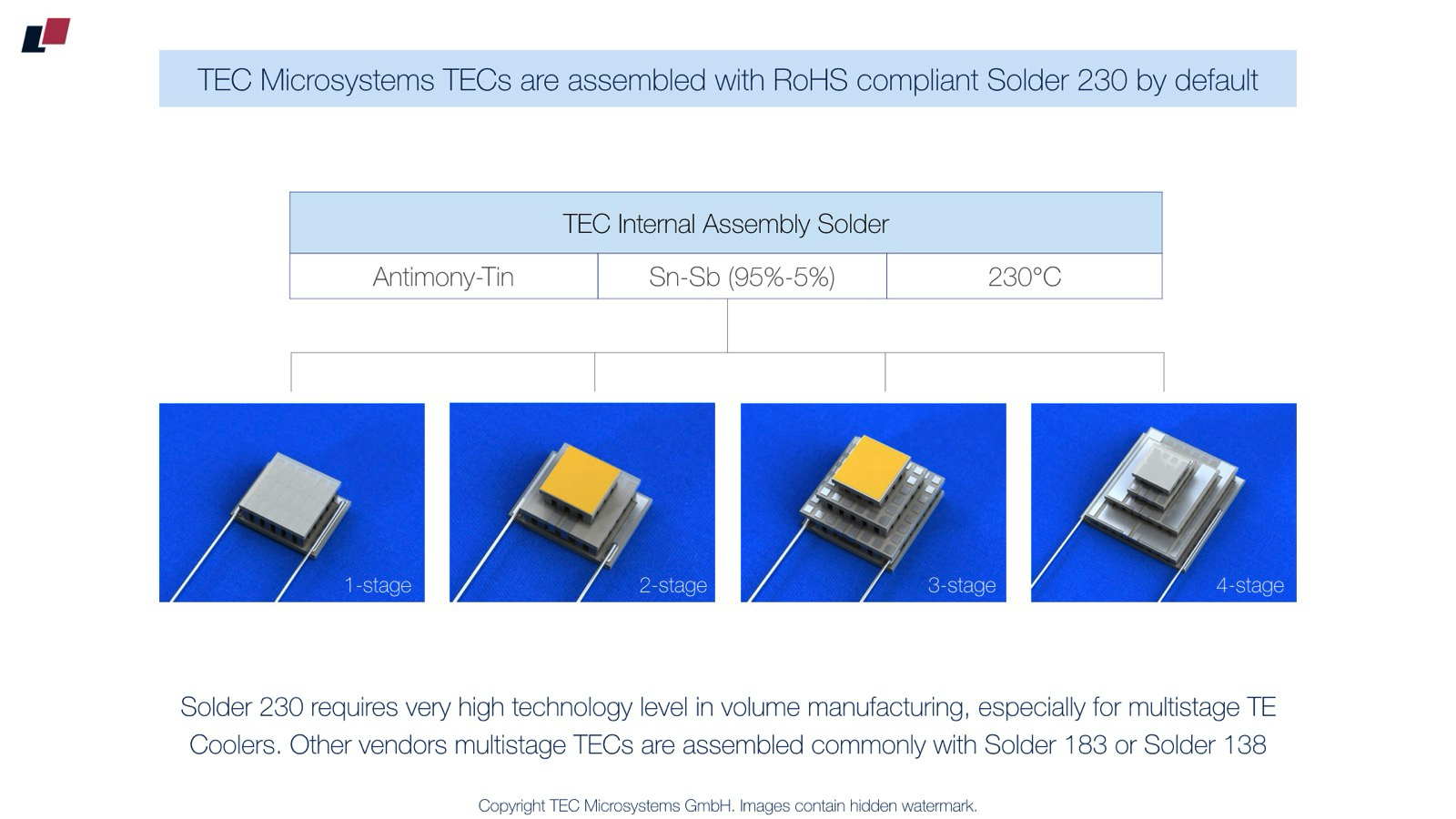

All 3MDC Thermoelectric Coolers have the "Out-of-Pyramide" concept.  Instead of classical pyramidal shape - typical for multistage thermoelectric coolers - all 3MDC TECs  have a cubic shape with the same dimensions of TEC cold and hot sides. Having the enlarged cold side 3MDC TECs provide all the benefits of 3-stage TE coolers in terms of cooling capacity and achievable temperature differences.  This is optimal for detector applications, especially for large-size detector arrays. 3MDC10 Series have the largest and most powerful three-stage thermoelectric coolers in 3MDC group.  3MDC10 thermoelectric coolers are assembled using RoHS compliant Sn-Sb solder  (Tmelt=230ºC) and meet Telcordia GR-486 standard requirements.  Wide range of TEC manufacturing options is available.  The standard and most common types from our 3MDC10 types are listed in the table below.  Detailed TEC drawings, 3D models, performance plots and estimations for particular application conditions are provided by request.

STANDARD 3MDC10 SERIES 3-STAGE THERMOELECTRIC COOLERS AVAILABLE

3MDC10 TE COOLERS ADVANTAGES

3MDC10 TE COOLERS KEY FEATURES

◻︎ "Out-of-Pyramide" Concept, enlarged cold side

◻ Cold Side from 12.0x12.0mm2 .. 17.0x17.0mm2

◻ Wide range of standard TEC types available

◻ Wide range of manufacturing options available

◻ High-quality bulk BiTe material

◻ Accurate steam soldering technology

◻ RoHS compliant TE Coolers by default

◻ Telcordia GR-468 qualified TECs
