TEC Microsystems - Miniature Thermoelectric Coolers and Sub-Assemblies




Performance @27ºC, Vacuum

Cold Side

Hot Side

Height

PDF


TEC TYPE

dTmax

Qmax

Imax

Umax

ACR

A

B

C

D

H



K

W

A

V

Ohm

mm

mm

mm

mm

mm

2MC10-015-xx (Al2O3 Ceramics)

2MC10-015-xx Thermoelectric Cooler

2MC10-015-08

94

1.7

4.1

1.3

0.3

3.0

6.0

6.0

9.0

3.3

2MC10-015-08 Thermoelectric Cooler Datasheet

2MC10-015-10

95

1.4

3.3

1.3

0.3

3.0

6.0

6.0

9.0

3.7

2MC10-015-10 Thermoelectric Cooler Datasheet

2MC10-015-12

96

1.2

2.9

1.4

0.4

3.0

6.0

6.0

9.0

4.1

2MC10-015-12 Thermoelectric Cooler Datasheet

2MC10-015-15

96

1.0

2.4

1.4

0.5

3.0

6.0

6.0

9.0

4.7

2MC10-015-15 Thermoelectric Cooler Datasheet

2MC10-015-20

97

0.7

1.8

1.4

0.6

3.0

6.0

6.0

9.0

5.7

2MC10-015-20 Thermoelectric Cooler Datasheet

2MC10-019-xx (Al2O3 Ceramics)

2MC10-019-xx Thermoelectric Cooler

2MC10-019-05

96

2.9

6.9

1.8

0.2

3.0

6.0

9.0

9.0

2.7

2MC10-019-05 Thermoelectric Cooler Datasheet

2MC10-019-08

98

1.9

4.5

1.9

0.3

3.0

6.0

9.0

9.0

3.3

2MC10-019-08 Thermoelectric Cooler Datasheet

2MC10-019-10

99

1.6

3.7

1.9

0.4

3.0

6.0

9.0

9.0

3.7

2MC10-019-10 Thermoelectric Cooler Datasheet

2MC10-019-12

100

1.3

3.1

1.9

0.5

3.0

6.0

9.0

9.0

4.1

2MC10-019-12 Thermoelectric Cooler Datasheet

2MC10-019-15

101

1.1

2.5

1.9

0.6

3.0

6.0

9.0

9.0

4.7

2MC10-019-15 Thermoelectric Cooler Datasheet

2MC10-019-20

101

0.8

1.9

1.9

0.8

3.0

6.0

9.0

9.0

5.7

2MC10-019-20 Thermoelectric Cooler Datasheet

2MC10-037-xx (Al2O3 Ceramics)

2MC10-037-xx Thermoelectric Cooler

2MC10-037-05

95

5.7

6.8

3.5

0.4

6.0

6.0

12.0

12.0

2.7

2MC10-037-05 Thermoelectric Cooler Datasheet

2MC10-037-08

98

3.8

4.5

3.6

0.7

6.0

6.0

12.0

12.0

3.3

2MC10-037-08 Thermoelectric Cooler Datasheet

2MC10-037-10

99

3.1

3.7

3.6

0.8

6.0

6.0

12.0

12.0

3.7

2MC10-037-10 Thermoelectric Cooler Datasheet

2MC10-037-12

100

2.6

3.1

3.6

1.0

6.0

6.0

12.0

12.0

4.1

2MC10-037-12 Thermoelectric Cooler Datasheet

2MC10-037-15

100

2.1

2.5

3.6

1.2

6.0

6.0

12.0

12.0

4.7

2MC10-037-15 Thermoelectric Cooler Datasheet

2MC10-037-20

101

1.6

1.9

3.6

1.6

6.0

6.0

12.0

12.0

5.7

2MC10-037-20 Thermoelectric Cooler Datasheet

2MC10-075-xx (Al2O3 Ceramics)

2MC10-075-xx Thermoelectric Cooler

2MC10-075-05

93

12.1

6.4

6.7

0.9

9.0

9.0

15.0

18.0

2.7

2MC10-075-05 Thermoelectric Cooler Datasheet

2MC10-075-08

96

8.1

4.4

7.1

1.3

9.0

9.0

15.0

18.0

3.3

2MC10-075-08 Thermoelectric Cooler Datasheet

2MC10-075-10

97

6.7

3.6

7.1

1.6

9.0

9.0

15.0

18.0

3.7

2MC10-075-10 Thermoelectric Cooler Datasheet

2MC10-075-12

98

5.6

3.0

7.1

1.9

9.0

9.0

15.0

18.0

4.1

2MC10-075-12 Thermoelectric Cooler Datasheet

2MC10-075-15

99

4.5

2.4

6.9

2.4

9.0

9.0

15.0

18.0

4.7

2MC10-075-15 Thermoelectric Cooler Datasheet

2MC10-075-20

99

3.5

1.9

7.1

3.2

9.0

9.0

15.0

18.0

5.7

2MC10-075-20 Thermoelectric Cooler Datasheet

2MC10-081-xx (Al2O3 Ceramics)

2MC10-081-xx Thermoelectric Cooler

2MC10-081-05

89

14.5

6.2

7.0

0.9

12.0

12.0

15.0

18.0

2.7

2MC10-081-05 Thermoelectric Cooler Datasheet

2MC10-081-08

92

9.6

4.1

7.0

1.4

12.0

12.0

15.0

18.0

3.3

2MC10-081-08 Thermoelectric Cooler Datasheet

2MC10-081-12

93

6.7

2.8

7.1

2.1

12.0

12.0

15.0

18.0

3.7

2MC10-081-12 Thermoelectric Cooler Datasheet

2MC10-081-10

93

7.9

3.3

7.1

1.8

12.0

12.0

15.0

18.0

3.7

2MC10-081-10 Thermoelectric Cooler Datasheet

2MC10-081-15

94

5.4

2.3

7.1

2.6

12.0

12.0

15.0

18.0

4.7

2MC10-081-15 Thermoelectric Cooler Datasheet

2MC10-081-20

94

4.1

1.7

7.1

3.4

12.0

12.0

15.0

18.0

5.7

2MC10-081-20 Thermoelectric Cooler Datasheet

2MC10-015-xxAN (AlN ceramics)

2MC10-015-xxAN Thermoelectric Cooler

2MC10-015-08AN

95

1.8

4.3

1.4

0.3

3.0

6.0

6.0

9.0

3.3

2MC10-015-08AN Thermoelectric Cooler Datasheet

2MC10-015-10AN

96

1.4

3.5

1.4

0.3

3.0

6.0

6.0

9.0

3.7

2MC10-015-10AN Thermoelectric Cooler Datasheet

2MC10-015-12AN

96

1.2

3.0

1.4

0.4

3.0

6.0

6.0

9.0

4.1

2MC10-015-12AN Thermoelectric Cooler Datasheet

2MC10-015-15AN

97

1.0

2.4

1.4

0.5

3.0

6.0

6.0

9.0

4.7

2MC10-015-15AN Thermoelectric Cooler Datasheet

2MC10-015-20AN

97

0.7

1.8

1.4

0.6

3.0

6.0

6.0

9.0

5.7

2MC10-015-20AN Thermoelectric Cooler Datasheet

2MC10-019-xxAN (AlN ceramics)

2MC10-019-xxAN Thermoelectric Cooler

2MC10-019-05AN

97

3.1

7.1

1.9

0.2

3.0

6.0

9.0

9.0

2.7

2MC10-019-05AN Thermoelectric Cooler Datasheet

2MC10-019-08AN

100

2.0

4.6

1.9

0.3

3.0

6.0

9.0

9.0

3.3

2MC10-019-08AN Thermoelectric Cooler Datasheet

2MC10-019-10AN

100

1.6

3.8

1.9

0.4

3.0

6.0

9.0

9.0

3.7

2MC10-019-10AN Thermoelectric Cooler Datasheet

2MC10-019-12AN

101

1.4

3.2

1.9

0.5

3.0

6.0

9.0

9.0

4.1

2MC10-019-12AN Thermoelectric Cooler Datasheet

2MC10-019-15AN

101

1.1

2.6

1.9

0.6

3.0

6.0

9.0

9.0

4.7

2MC10-019-15AN Thermoelectric Cooler Datasheet

2MC10-019-20AN

101

0.8

1.9

1.9

0.8

3.0

6.0

9.0

9.0

5.7

2MC10-019-20AN Thermoelectric Cooler Datasheet

2MC10-037-xxAN (AlN ceramics)

2MC10-037-xxAN Thermoelectric Cooler

2MC10-037-05AN

97

6.0

6.9

3.5

0.4

6.0

6.0

12.0

12.0

2.7

2MC10-037-05AN Thermoelectric Cooler Datasheet

2MC10-037-08AN

99

3.9

4.5

3.5

0.7

6.0

6.0

12.0

12.0

3.3

2MC10-037-08AN Thermoelectric Cooler Datasheet

2MC10-037-10AN

100

3.2

3.7

3.6

0.8

6.0

6.0

12.0

12.0

3.7

2MC10-037-10AN Thermoelectric Cooler Datasheet

2MC10-037-12AN

101

2.7

3.1

3.5

1.0

6.0

6.0

12.0

12.0

4.1

2MC10-037-12AN Thermoelectric Cooler Datasheet

2MC10-037-15AN

101

2.2

2.5

3.6

1.2

6.0

6.0

12.0

12.0

4.7

2MC10-037-15AN Thermoelectric Cooler Datasheet

2MC10-037-20AN

101

2.2

2.5

3.6

1.2

6.0

6.0

12.0

12.0

5.7

2MC10-037-20AN Thermoelectric Cooler Datasheet

2MC10-075-xxAN (AlN ceramics)

2MC10-075-xxAN Thermoelectric Cooler

2MC10-075-05AN

95

13.0

6.9

7.1

0.9

9.0

9.0

15.0

18.0

2.7

2MC10-075-05AN Thermoelectric Cooler Datasheet

2MC10-075-08AN

98

8.5

4.5

7.1

1.3

9.0

9.0

15.0

18.0

3.3

2MC10-075-08AN Thermoelectric Cooler Datasheet

2MC10-075-10AN

98

6.9

3.6

7.1

1.6

9.0

9.0

15.0

18.0

3.7

2MC10-075-10AN Thermoelectric Cooler Datasheet

2MC10-075-12AN

99

5.7

2.9

6.8

1.9

9.0

9.0

15.0

18.0

4.1

2MC10-075-12AN Thermoelectric Cooler Datasheet

2MC10-075-15AN

99

4.7

2.5

7.1

2.4

9.0

9.0

15.0

18.0

4.7

2MC10-075-15AN Thermoelectric Cooler Datasheet

2MC10-075-20AN

100

3.5

1.9

7.1

3.2

9.0

9.0

15.0

18.0

5.7

2MC10-075-20AN Thermoelectric Cooler Datasheet

2MC10-081-xxAN (AlN ceramics)

2MC10-081-xxAN Thermoelectric Cooler

2MC10-081-05AN

90

15.3

6.4

7.1

0.9

12.0

12.0

15.0

18.0

2.7

2MC10-081-05AN Thermoelectric Cooler Datasheet

2MC10-081-08AN

93

10.0

4.2

7.1

1.4

12.0

12.0

15.0

18.0

3.3

2MC10-081-08AN Thermoelectric Cooler Datasheet

2MC10-081-10AN

94

8.1

3.4

7.1

1.8

12.0

12.0

15.0

18.0

3.7

2MC10-081-10AN Thermoelectric Cooler Datasheet

2MC10-081-12AN

94

6.8

2.8

7.1

2.1

12.0

12.0

15.0

18.0

3.7

2MC10-081-12AN Thermoelectric Cooler Datasheet

2MC10-081-15AN

94

5.5

2.3

7.1

2.6

12.0

12.0

15.0

18.0

4.7

2MC10-081-15AN Thermoelectric Cooler Datasheet

2MC10-081-20AN

95

4.2

1.7

7.1

3.4

12.0

12.0

15.0

18.0

5.7

2MC10-081-20AN Thermoelectric Cooler Datasheet


STANDARD MC10 SERIES 2-STAGE THERMOELECTRIC COOLERS AVAILABLE

2MC10 TE COOLERS ADVANTAGES

2MC10 TE COOLERS KEY FEATURES

◻︎ "Classic" regular TEC assembly technology

◻ Cold Side from 3x6mm2 up to 12x12mm2

◻ TECs with large size and low operating voltage

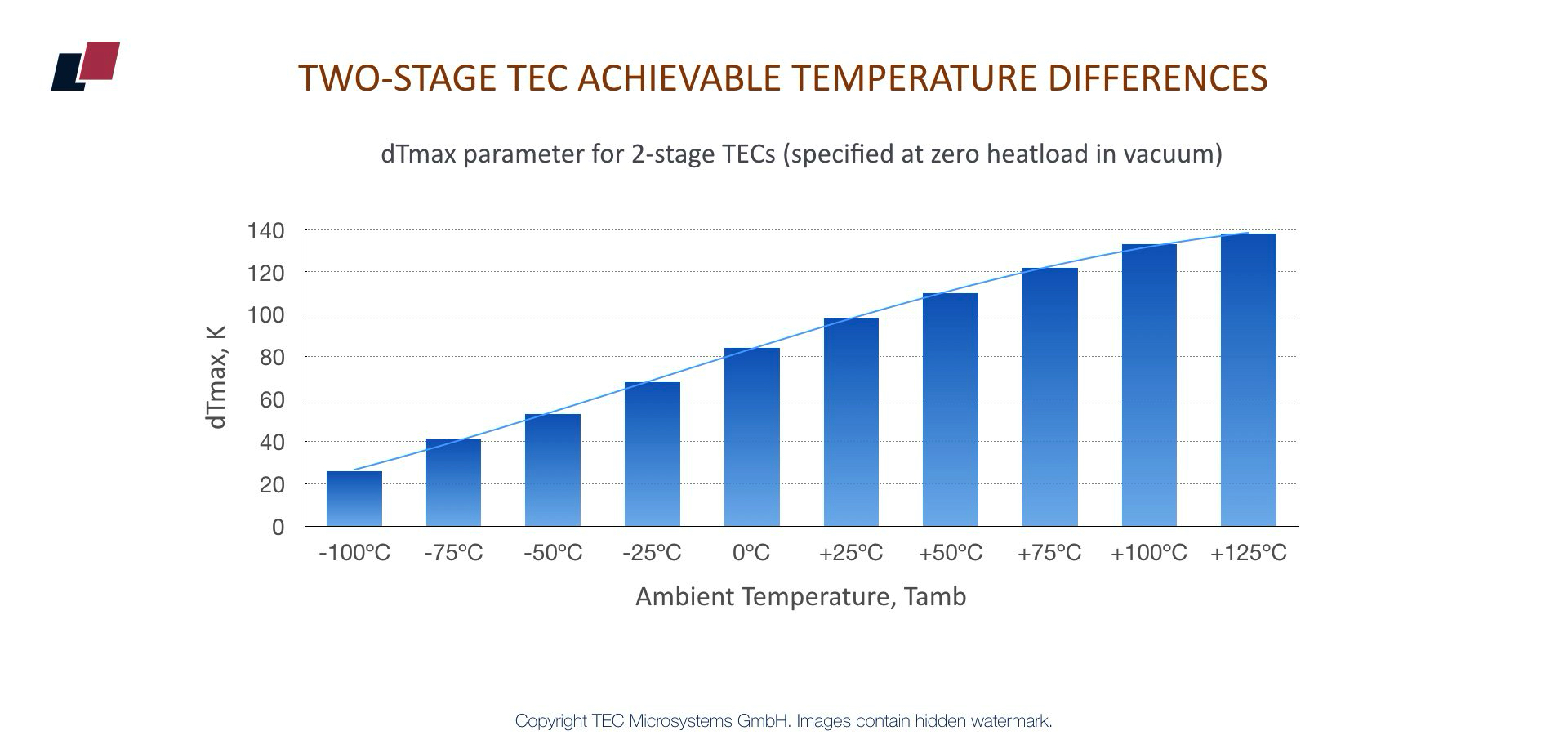

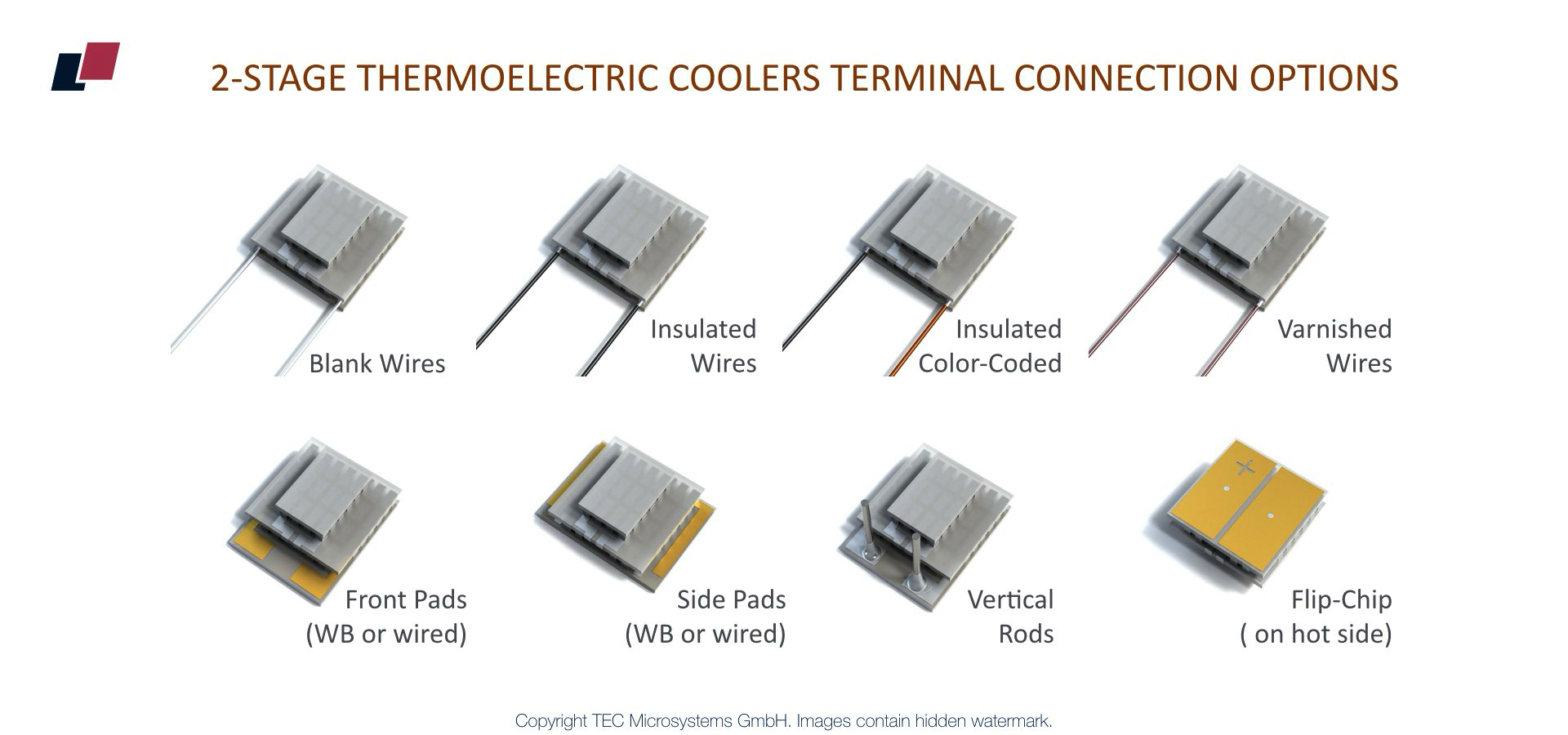

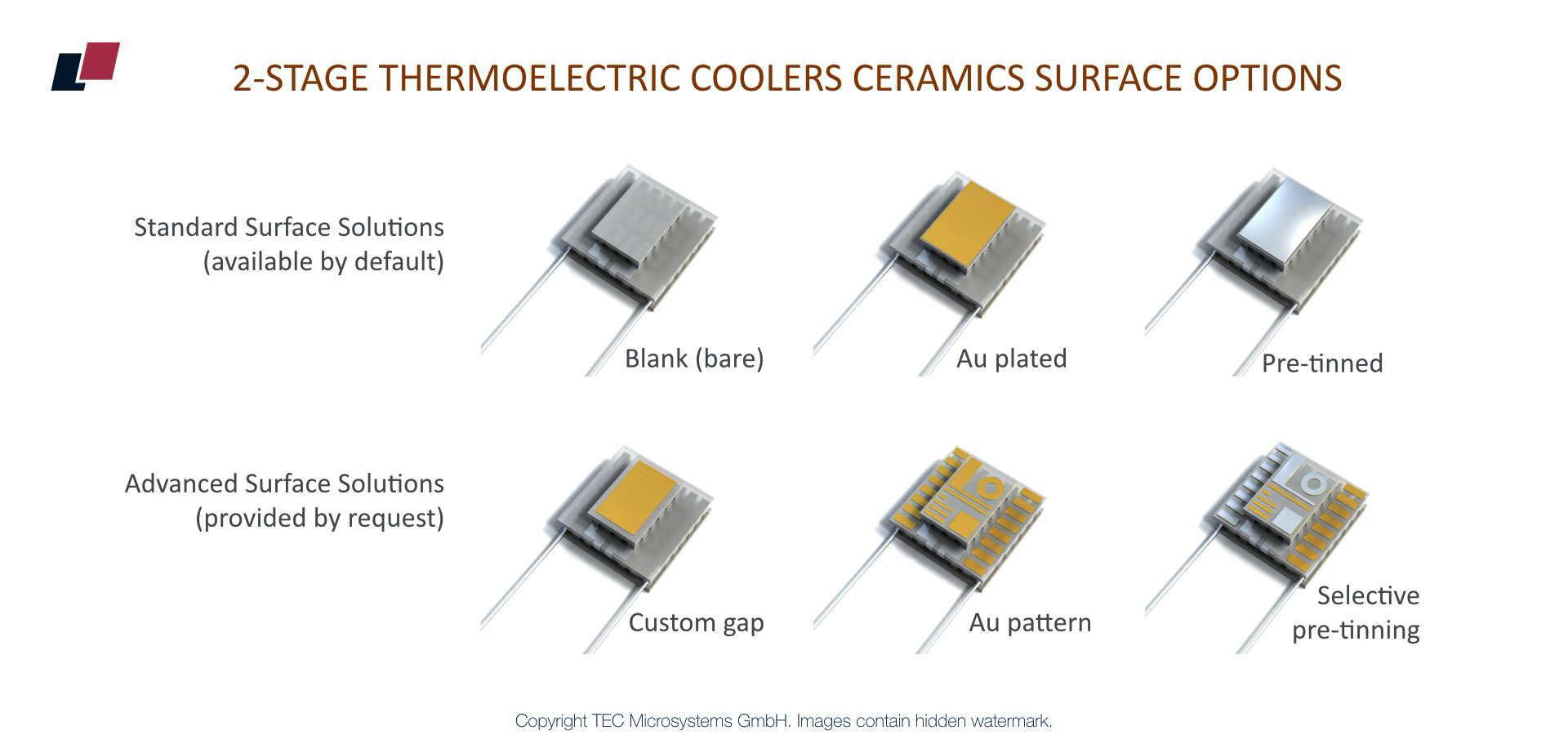

◻ Wide range of manufacturing options available

◻ High-quality bulk BiTe material

◻ Accurate steam soldering technology

◻ RoHS compliant TE Coolers by default

◻ Telcordia GR-468 qualified TECs

4MC10

Four-stage

TE Coolers

3MC10

Three-stage

TE Coolers

2MC10

Two-stage

TE Coolers

1MC10

Single-stage

TE Coolers

The two-stage thermoelectric modules of the 2MC10 series are among the largest TE coolers in our range (according to miniature TECs standards). Based on classic, time-tested technology and made from high-quality materials, these thermoelectric coolers offer  high reliability and cooling performance. These TEcs are an excellent choice for applications where thermal loads are high and deep cooling of the object is required.  The MC10 Series two-stage thermoelectric coolers are ideal for cooling CCDs, CMOS sensors, IR and X-ray detectors, and optical components, and are ideal for scientific projects in electron microscopy and vacuum cooling applications. In addition, our 2MC10 series thermoelectric coolers have been successfully used in numerous space projects.


All thermoelectric coolers are assembled using RoHS compliant Sn-Sb solder with a melting temperature Tmelt=230ºC.  Thermoelectric coolers of MC10 Series meet Telcordia GR-486 standard requirements.  Wide range of TEC manufacturing options is available.  The standard and most common two-stage types from our MC10 Series are listed in the table below.  Detailed TEC drawings, 3D models, performance plots and estimations for particular application conditions are provided by request.

Expand Table >>
