Performance @27ºC, Vacuum |
Performance @50ºC, Dry N2 |
Cold Side |
Hot Side |
Height |
||||||||||
|
TEC TYPE |
dTmax |
Qmax |
Imax |
Umax |
ACR |
dTmax |
Qmax |
Imax |
Umax |
ACR |
A |
B |
C |
D |
H |
|
|
K |
W |
A |
V |
Ohm |
K |
W |
A |
V |
Ohm |
mm |
mm |
mm |
mm |
mm |
|
4MC10-095-xx |
|||||||||||||||
|
4MC10-095-08 |
121 |
1.9 |
3.2 |
7.0 |
1.90 |
127 |
2.2 |
3.3 |
8.0 |
2.11 |
3.0 |
6.0 |
15.0 |
18.0 |
6.3 |
|
4MC10-095-10 |
121 |
1.6 |
2.7 |
6.5 |
2.06 |
126 |
1.8 |
2.9 |
7.4 |
2.29 |
3.0 |
6.0 |
15.0 |
18.0 |
6.9 |
|
4MC10-095-15 |
122 |
1.1 |
1.9 |
6.5 |
3.03 |
123 |
1.3 |
2.0 |
7.5 |
3.38 |
3.0 |
6.0 |
15.0 |
18.0 |
8.9 |
|
4MC10-095-20 |
123 |
0.8 |
1.4 |
6.5 |
4.01 |
119 |
1.0 |
1.5 |
7.6 |
4.47 |
3.0 |
6.0 |
15.0 |
18.0 |
10.9 |
|
4MC10-095-xxAN |
|||||||||||||||
|
4MC10-095-08AN |
122 |
2.0 |
3.3 |
7.0 |
1.90 |
128 |
2.2 |
3.4 |
8.0 |
2.11 |
3.0 |
6.0 |
15.0 |
18.0 |
6.3 |
|
4MC10-095-10AN |
122 |
1.6 |
2.8 |
6.5 |
2.06 |
127 |
1.9 |
2.9 |
7.4 |
2.29 |
3.0 |
6.0 |
15.0 |
18.0 |
6.9 |
|
4MC10-095-15AN |
123 |
1.1 |
1.9 |
6.5 |
3.03 |
124 |
1.3 |
2.0 |
7.5 |
3.38 |
3.0 |
6.0 |
15.0 |
18.0 |
8.9 |
|
4MC10-095-20AN |
123 |
0.8 |
1.4 |
6.6 |
4.01 |
120 |
1.0 |
1.5 |
7.6 |
4.47 |
3.0 |
6.0 |
15.0 |
18.0 |
10.9 |
|
4MC10-095-xx/1 |
|||||||||||||||
|
4MC10-095-08/1 |
115 |
2.4 |
3.1 |
5.9 |
1.67 |
119 |
2.8 |
3.2 |
6.7 |
1.85 |
4.0 |
11.0 |
15.0 |
16.5 |
6.1 |
|
4MC10-095-10/1 |
115 |
2.0 |
2.5 |
5.9 |
2.06 |
117 |
2.3 |
2.7 |
6.9 |
2.29 |
4.0 |
11.0 |
15.0 |
16.5 |
6.9 |
|
4MC10-095-15/1 |
116 |
1.3 |
1.7 |
6.0 |
3.03 |
113 |
1.6 |
1.8 |
6.8 |
3.38 |
4.0 |
11.0 |
15.0 |
16.5 |
8.9 |
|
4MC10-095-20/1 |
116 |
1.0 |
1.3 |
6.0 |
4.01 |
109 |
1.2 |
1.4 |
6.9 |
4.47 |
4.0 |
11.0 |
15.0 |
16.5 |
10.9 |
|
4MC10-095-xx/1AN |
|||||||||||||||
|
4MC10-095-08/1AN |
116 |
2.5 |
3.1 |
6.0 |
1.67 |
120 |
2.9 |
3.3 |
6.7 |
1.85 |
4.0 |
11.0 |
15.0 |
16.5 |
6.1 |
|
4MC10-095-10/1AN |
116 |
2.0 |
2.6 |
6.0 |
2.06 |
118 |
2.3 |
2.7 |
6.8 |
2.29 |
4.0 |
11.0 |
15.0 |
16.5 |
6.9 |
|
4MC10-095-15/1AN |
117 |
1.4 |
1.8 |
6.0 |
3.03 |
114 |
1.6 |
1.8 |
6.9 |
3.38 |
4.0 |
11.0 |
15.0 |
16.5 |
8.9 |
|
4MC10-095-20/1AN |
117 |
1.0 |
1.3 |
6.0 |
4.01 |
109 |
1.2 |
1.4 |
6.9 |
4.47 |
4.0 |
11.0 |
15.0 |
16.5 |
10.9 |
|
4MC10-248-xxAN |
|||||||||||||||
|
4MC10-248-08AN |
122 |
5.0 |
6.9 |
8.7 |
1.09 |
126 |
5.8 |
7.3 |
10.0 |
1.21 |
10.0 |
10.0 |
27.0 |
27.0 |
6.1 |
|
4MC10-248-10AN |
123 |
4.0 |
5.7 |
8.8 |
1.34 |
124 |
4.7 |
6.0 |
10.1 |
1.49 |
10.0 |
10.0 |
27.0 |
27.0 |
6.9 |
|
4MC10-248-15AN |
124 |
2.7 |
3.9 |
8.8 |
1.98 |
119 |
3.2 |
4.1 |
10.2 |
2.21 |
10.0 |
10.0 |
27.0 |
27.0 |
8.9 |
|
4MC10-248-20AN |
123 |
2.1 |
2.9 |
8.8 |
2.61 |
114 |
2.4 |
3.2 |
10.3 |
2.92 |
10.0 |
10.0 |
27.0 |
27.0 |
10.9 |
STANDARD MC10 SERIES 4-STAGE THERMOELECTRIC COOLERS AVAILABLE
4MC10 TE COOLERS ADVANTAGES
4MC10 TE COOLERS KEY FEATURES
◻︎ "Classic" regular assembly technology
◻ Cold side from 3x6mm2 up to 4x11mm2
◻ Solutions with round cold side are available
◻ Wide range of manufacturing options available
◻ High-quality bulk BiTe material
◻ Accurate steam soldering technology
◻ RoHS compliant TE Coolers by default
◻ Telcordia GR-468 qualified TECs
4MC10
Four-stage
TE Coolers

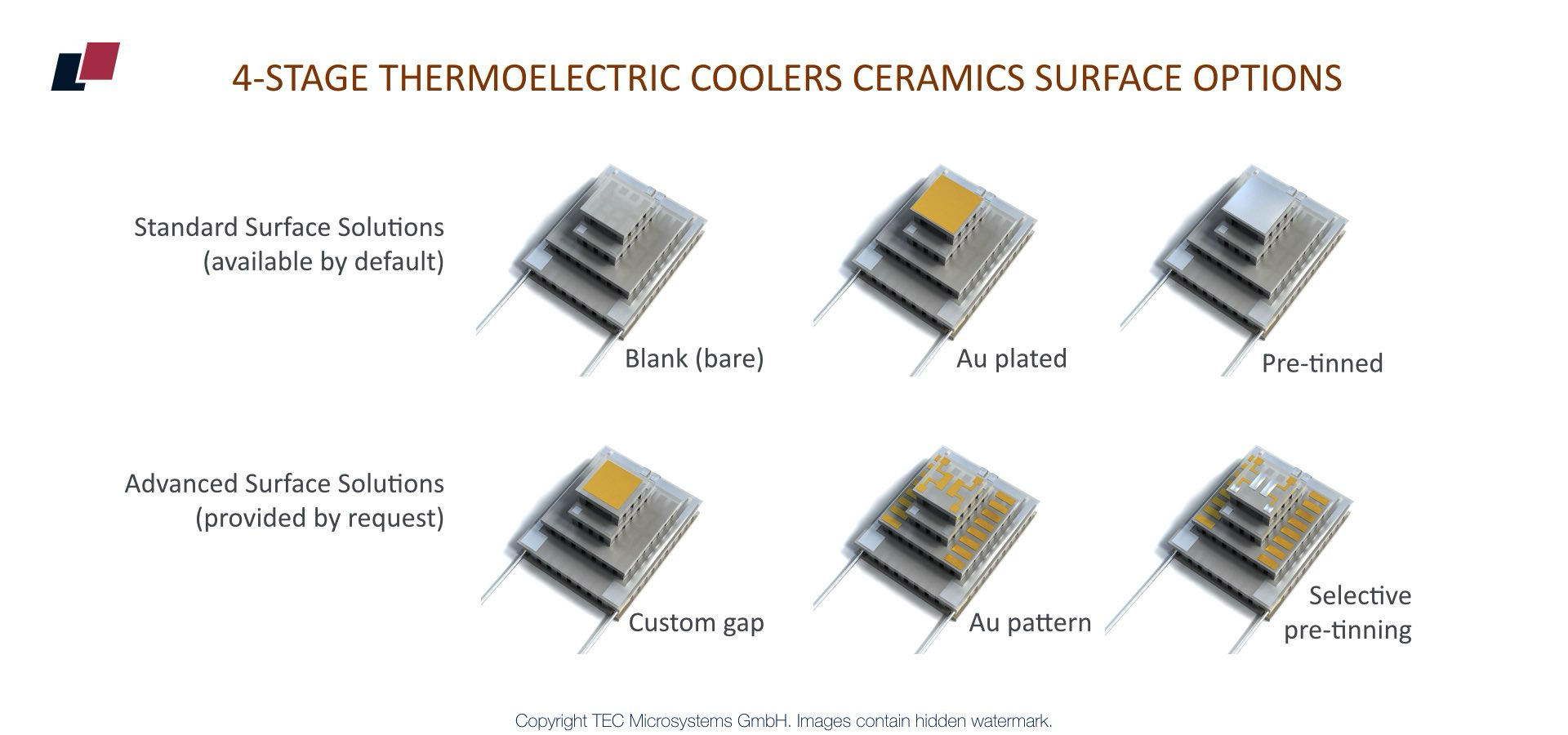

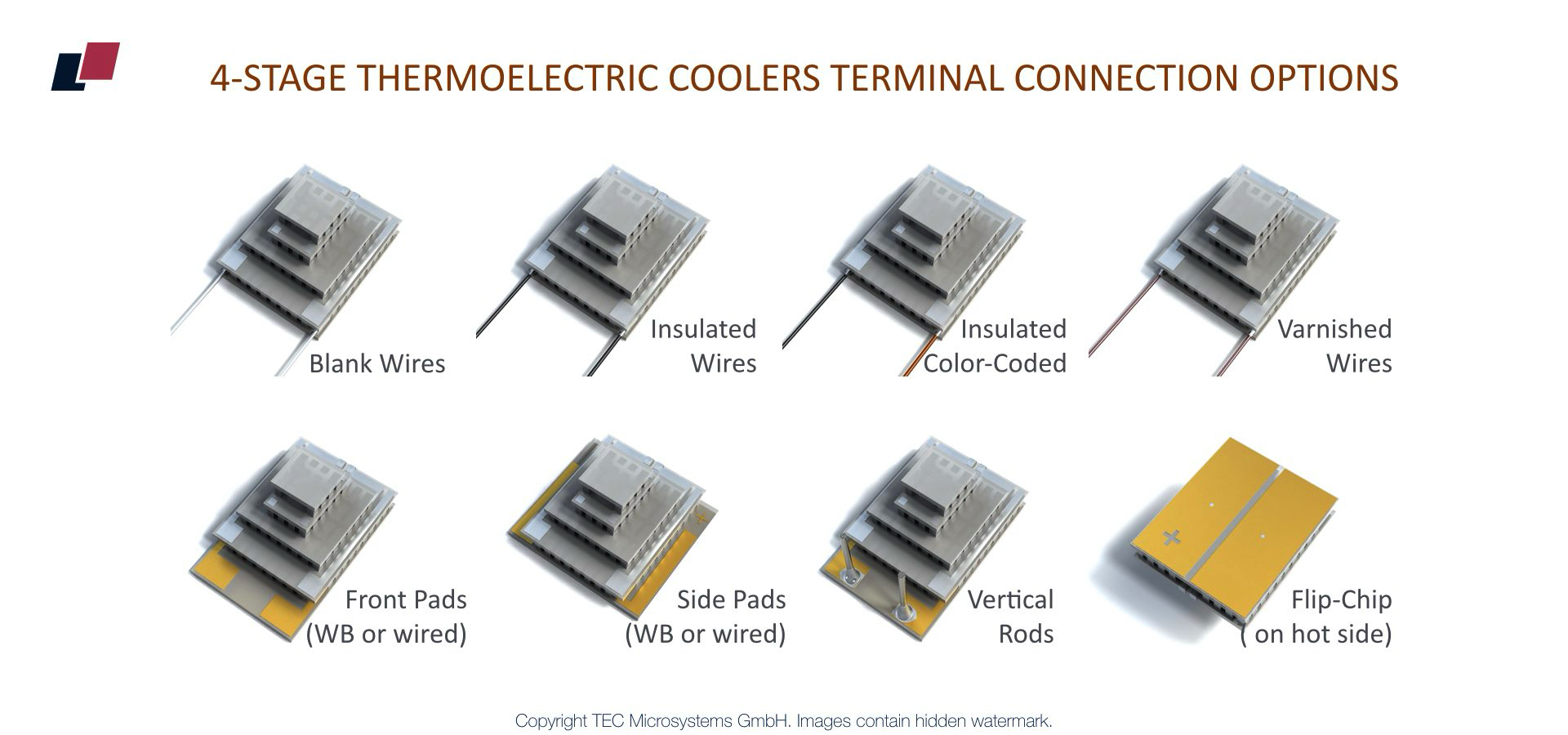

Thermoelectric coolers of MC10 Series are the largest ones among our "classic" TECs with regular assembly technology. MC10 Series uses large BiTe pellets cross-section and regular TEC assembly technology with max 40elements/cm2 pellets placement density. Four-stage thermoelectric coolers in MC10 Series have cold side dimensions from 3.0 x 6.0mm2 up to 4.0 x 11.0mm2 . MC10 TEC Series is universal by application focus with many surface options and terminal connection configurations. All thermoelectric coolers are assembled using RoHS compliant Sn-Sb solder with a melting temperature Tmelt=230ºC. Thermoelectric coolers of MC10 Series meet Telcordia GR-486 standard requirements. Wide range of TEC manufacturing options is available. The standard and most common four-stage types from our MC10 Series are listed in the table below. Detailed TEC drawings, 3D models, performance plots and estimations for particular application conditions are provided by request.
