TEC Microsystems - Miniature Thermoelectric Coolers and Sub-Assemblies

Performance @27ºC, Vacuum

Performance @50ºC, Dry N2

Cold Side

Hot Side

Height

TEC TYPE

dTmax

Qmax

Imax

Umax

ACR

dTmax

Qmax

Imax

Umax

ACR

A

B

C

D

H


K

W

A

V

Ohm

K

W

A

V

Ohm

mm

mm

mm

mm

mm

2MDX06-014-xx

2MDX06-014-0510

92

1.0

2.4

1.2

0.42

94

1.1

2.4

1.4

0.47

4.2

4.2

4.2

4.2

4.1

2MDX06-014-0816

94

0.6

1.6

1.2

0.66

93

0.7

1.6

1.4

0.73

4.2

4.2

4.2

4.2

3.2

2MDX06-014-xxAN

2MDX06-014-0510AN

94

1.0

2.5

1.3

0.42

97

1.1

2.5

1.4

0.47

4.2

4.2

4.2

4.2

2.5

2MDX06-014-0816AN

95

0.6

1.6

1.2

0.66

96

0.7

1.6

1.4

0.73

4.2

4.2

4.2

4.2

3.4

2MDX06-022-xx

2MDX06-022-0510

93

1.5

2.5

2.0

0.66

96

1.7

2.4

2.2

0.73

5.0

5.0

5.0

5.0

3.2

2MDX06-022-0816

95

1.0

1.6

2.0

1.03

96

1.1

1.6

2.2

1.15

5.0

5.0

5.0

5.0

4.1

2MDX06-022-xxAN

2MDX06-022-0510AN

95

1.6

2.5

2.0

0.66

100

1.8

2.5

2.2

0.73

5.0

5.0

5.0

5.0

2.5

2MDX06-022-0816AN

97

1.0

1.6

2.0

1.03

98

1.1

1.6

2.2

1.15

5.0

5.0

5.0

5.0

3.4

2MDX06-042-xx

2MDX06-042-0510

92

2.9

2.4

3.7

1.25

97

3.2

2.4

4.1

1.40

6.6

6.6

6.6

6.6

3.2

2MDX06-042-0816

94

1.8

1.5

3.6

1.97

97

2.1

1.5

4.1

2.20

6.6

6.6

6.6

6.6

4.1

2MDX06-042-xxAN

2MDX06-042-0510AN

94

3.0

2.5

3.7

1.25

100

3.4

2.5

4.1

1.40

6.6

6.6

6.6

6.6

2.5

2MDX06-042-0816AN

96

1.9

1.6

3.7

1.97

99

2.2

1.6

4.1

2.20

6.6

6.6

6.6

6.6

3.4

2MDX06-066-xx

2MDX06-066-0510

93

4.4

2.4

5.9

1.97

98

4.9

2.4

6.5

2.19

8.2

8.2

8.2

8.2

3.2

2MDX06-066-0816

96

2.9

1.6

6.1

3.15

99

3.2

1.6

6.7

3.51

8.2

8.2

8.2

8.2

4.1

2MDX06-066-xxAN

2MDX06-066-0510AN

96

4.7

2.5

6.0

1.97

101

5.1

2.5

6.6

2.19

8.2

8.2

8.2

8.2

2.5

2MDX06-066-0816AN

97

3.0

1.6

6.1

3.15

101

3.4

1.6

6.8

3.51

8.2

8.2

8.2

8.2

3.4

2MDX06-102-xx

2MDX06-102-0510

90

7.0

2.3

8.6

3.04

95

7.7

2.3

9.4

3.39

9.8

9.8

9.8

9.8

3.2

2MDX06-102-0816

92

4.6

1.5

8.6

4.79

96

5.1

1.5

9.5

5.35

9.8

9.8

9.8

9.8

4.1

2MDX06-102-xxAN

2MDX06-102-0510AN

92

7.5

2.4

8.7

3.04

98

8.2

2.4

9.6

3.39

9.8

9.8

9.8

9.8

2.5

2MDX06-102-0816AN

93

4.8

1.5

8.7

4.79

98

5.3

1.5

9.6

5.35

9.8

9.8

9.8

9.8

3.4

2MDX06-138-xx

2MDX06-138-0510

91

9.4

2.3

11.8

4.12

96

10.3

2.3

13.0

4.59

11.4

11.4

11.4

11.4

3.2

2MDX06-138-0816

93

6.2

1.5

11.9

6.48

97

6.8

1.5

13.1

7.23

11.4

11.4

11.4

11.4

4.1

2MDX06-138-xxAN

2MDX06-138-0510AN

93

10.1

2.4

11.9

4.12

99

11.0

2.4

13.2

4.59

11.4

11.4

11.4

11.4

2.5

2MDX06-138-0816AN

94

6.4

1.5

12.0

6.48

99

7.1

1.5

13.2

7.23

11.4

11.4

11.4

11.4

3.4

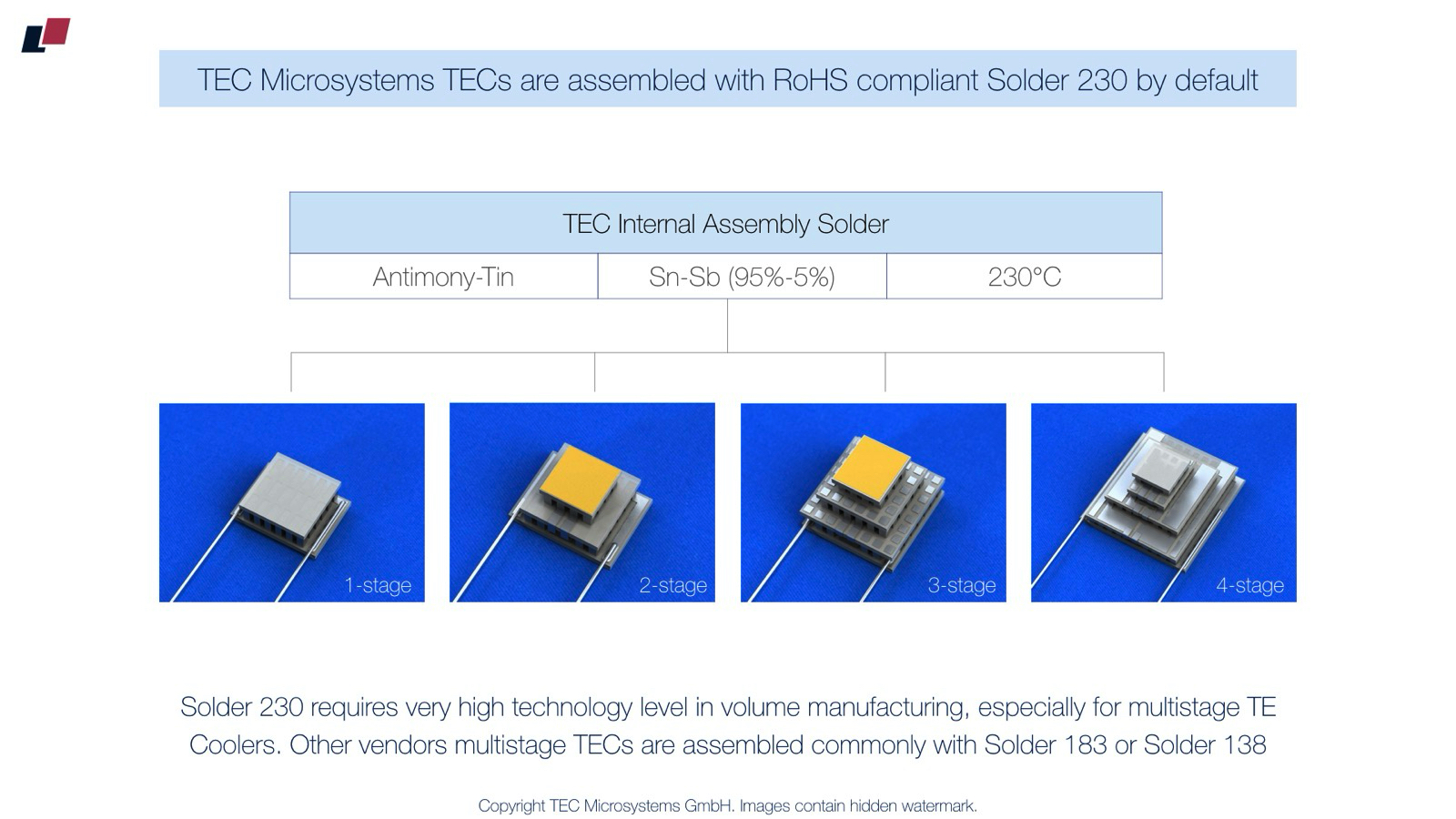

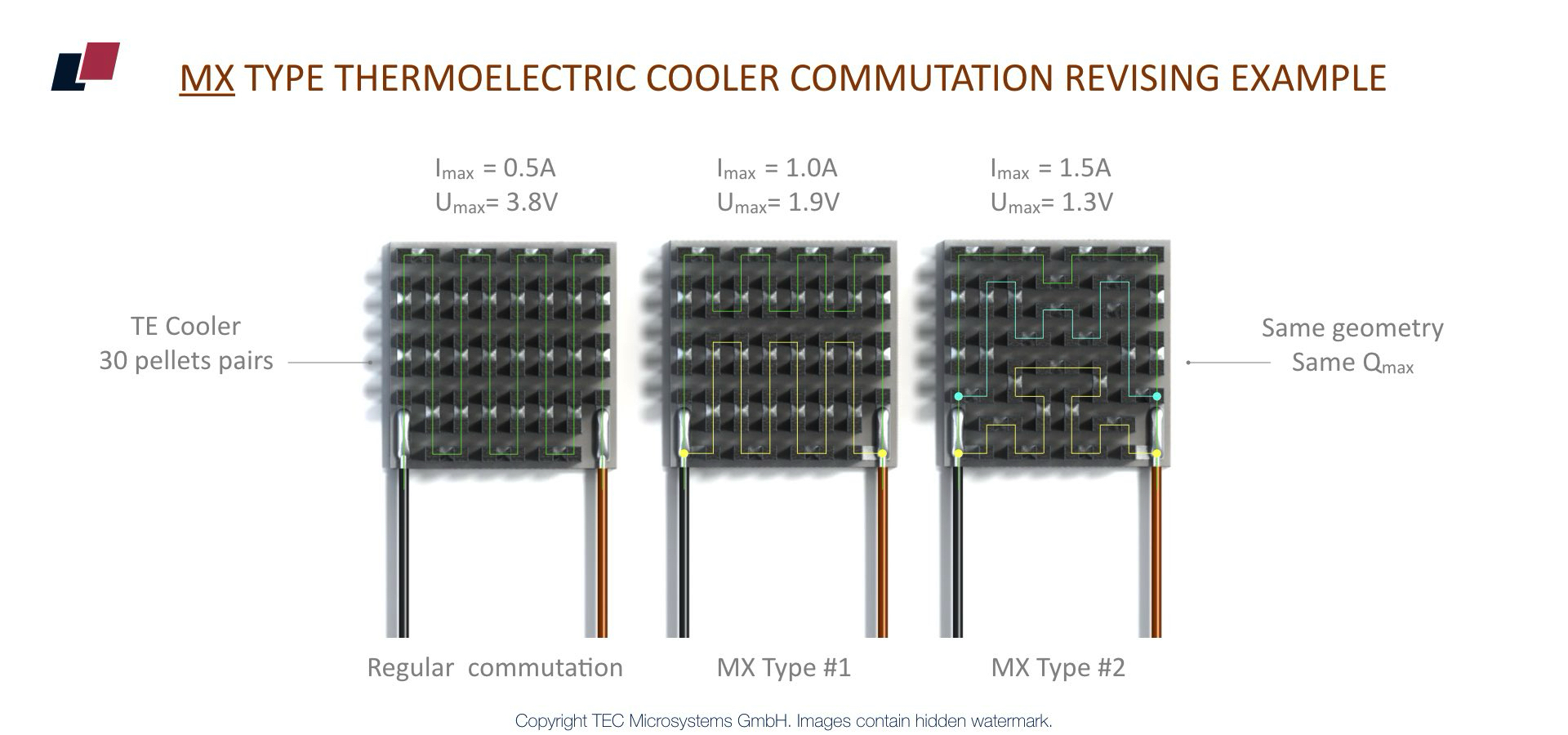

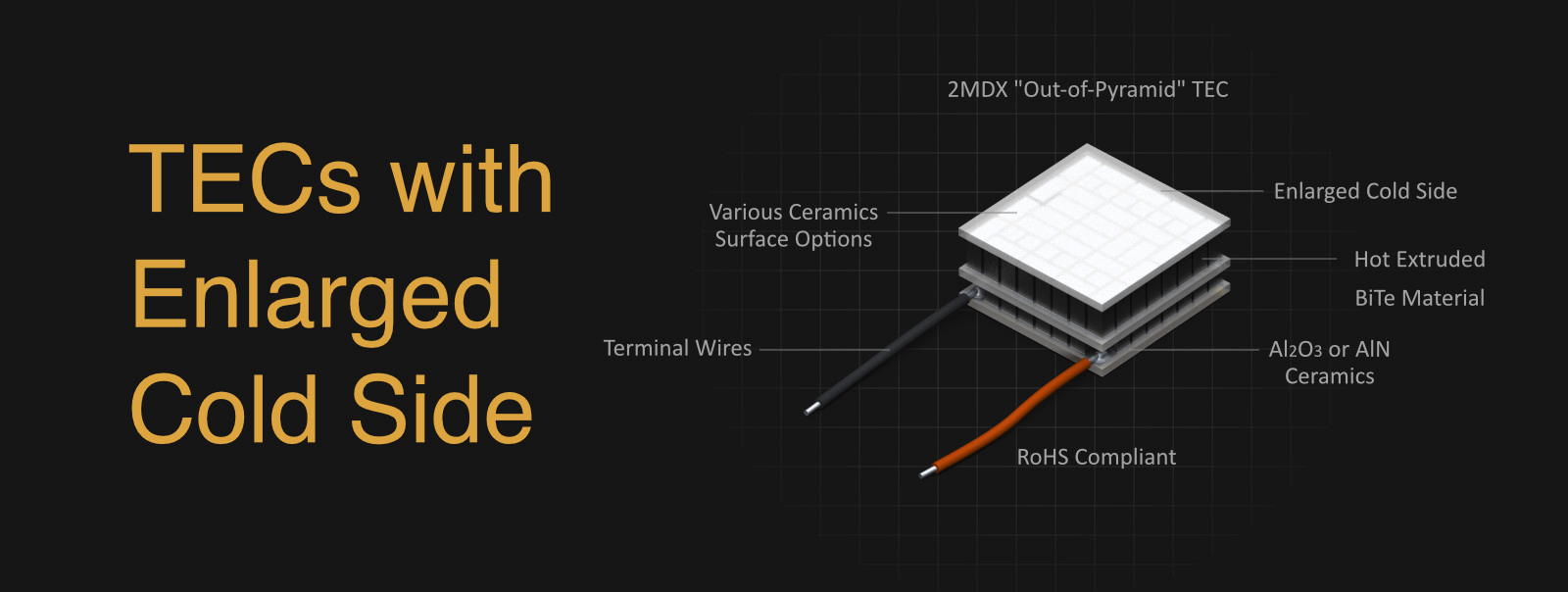

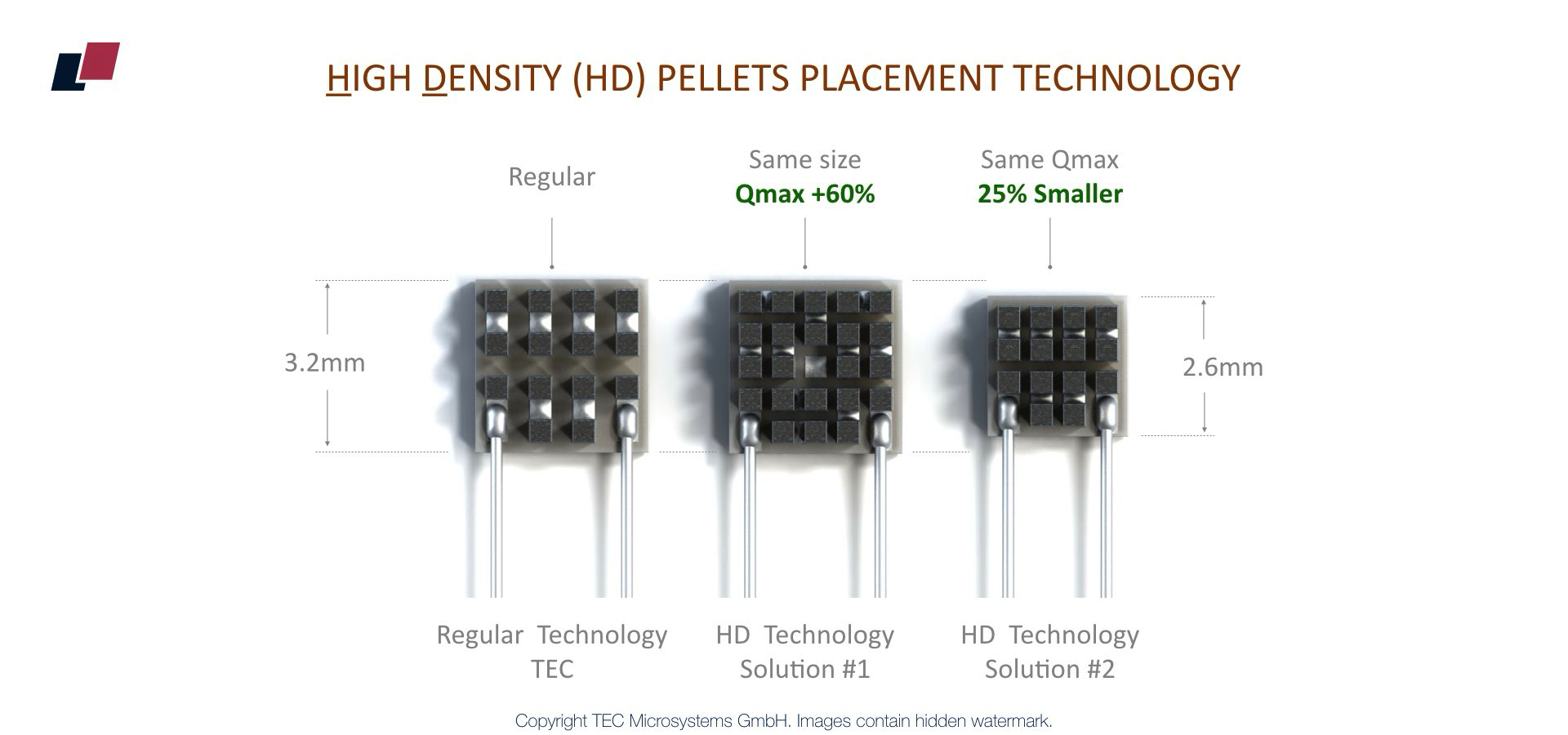

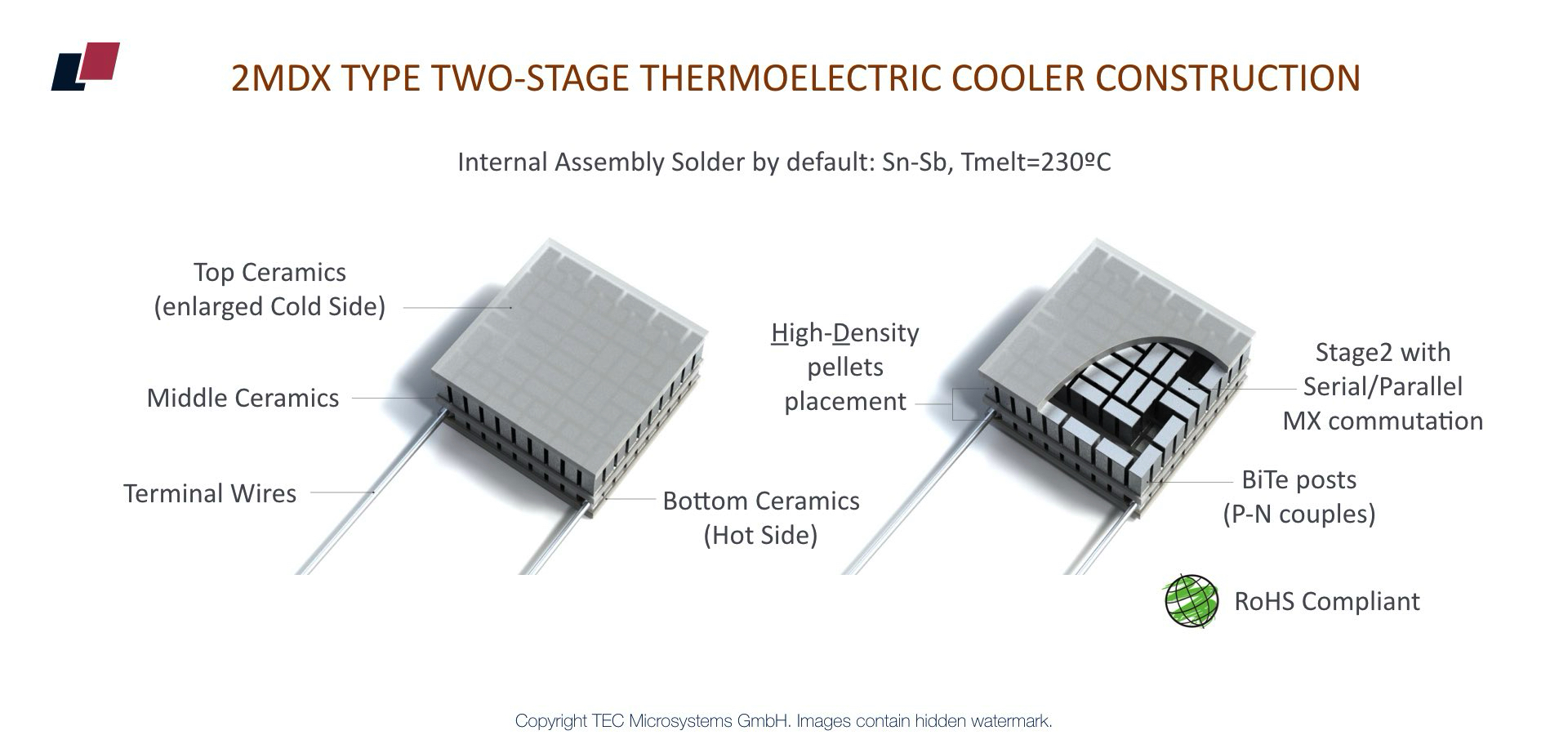

2MDX06 thermoelectric coolers are the analogs of our 2MD06 TECs by performance but have a larger cold side.  All 2MDX TECs are based on HD technology and have the revised commutation between pellets on TEC second stage.  The mix of serial and parallel commutation allows to increase the number of pellets on top stage and enlarge TEC cold side.  The optimal stage coefficient is achieved by pellets height adjustment.  Such method allows to enlarge TEC cold side, increase the mechanical endurance of TEC and keep the optimal cooling performance without power consumption increasing.  2MDX TE coolers are optimal for various sensing applications where 2-stage TEC cooling performance and large cold side are required.  2MDX06 TECs are assembled using RoHS compliant Sn-Sb solder (Tmelt=230ºC) and meet Telcordia GR-486 standard requirements.  The examples of the most common 2MDX06  thermoelectric types are listed in the table below.  Detailed TEC drawings, 3D models, performance plots and estimations for particular application conditions are provided by request.

STANDARD 2MDX06 TYPE  2-STAGE THERMOELECTRIC COOLERS

2MDX06 TE COOLERS ADVANTAGES

2MDX06 TE COOLERS KEY FEATURES

◻︎ Higher mechanical endurance of second stage

◻ Enlarged thermoelectric cooler cold side

◻ Unique mix of HD Technology and MX topology

◻ Wide range of manufacturing options available

◻ High-quality bulk BiTe material

◻ Accurate steam soldering technology

◻ RoHS compliant TE Coolers by default

◻ Telcordia GR-468 qualified TECs

Thermoelectric coolers of MDX06 Series - advanced 2-stage TECs with enlarged cold side for detector applications

2MDX06

Two-stage

TE Coolers

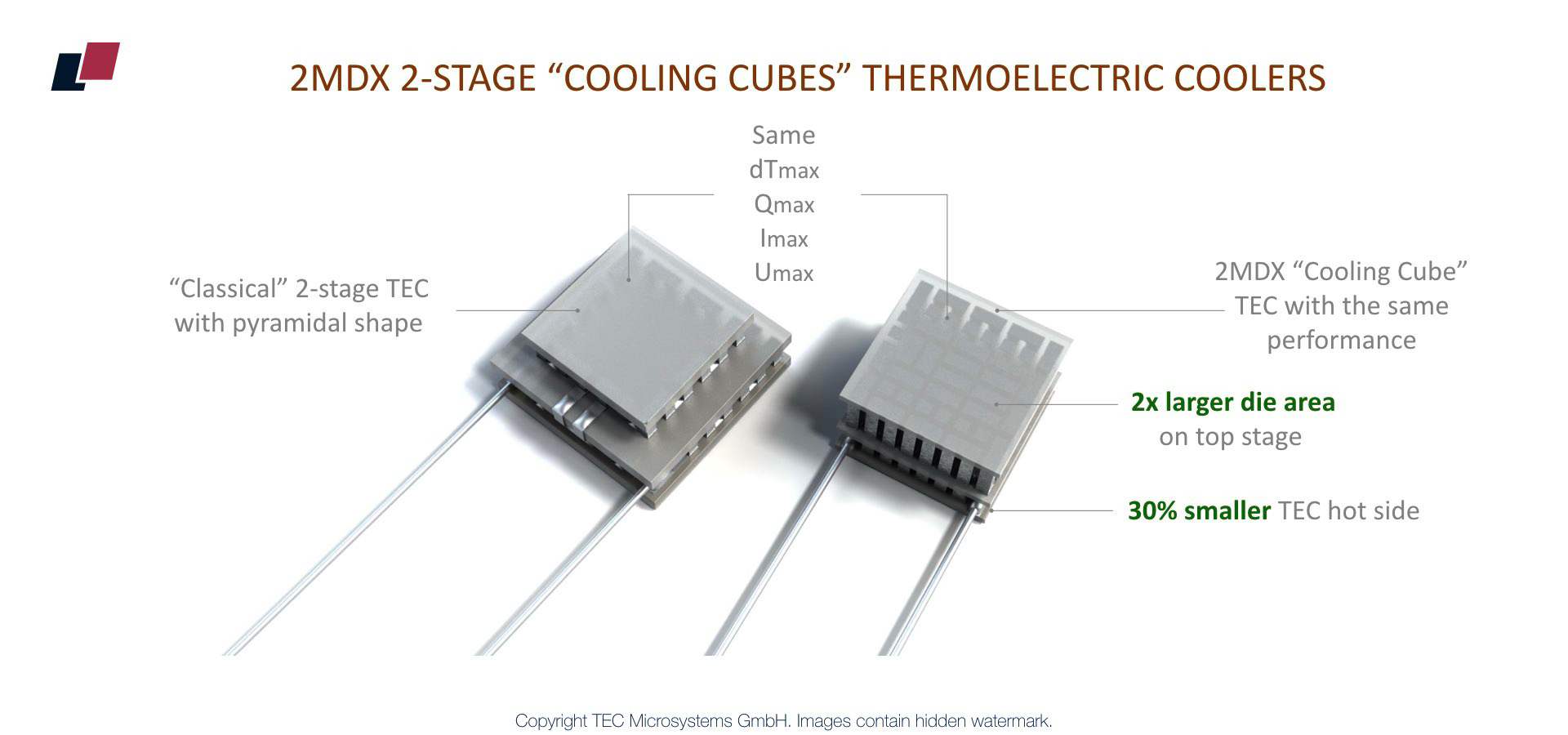

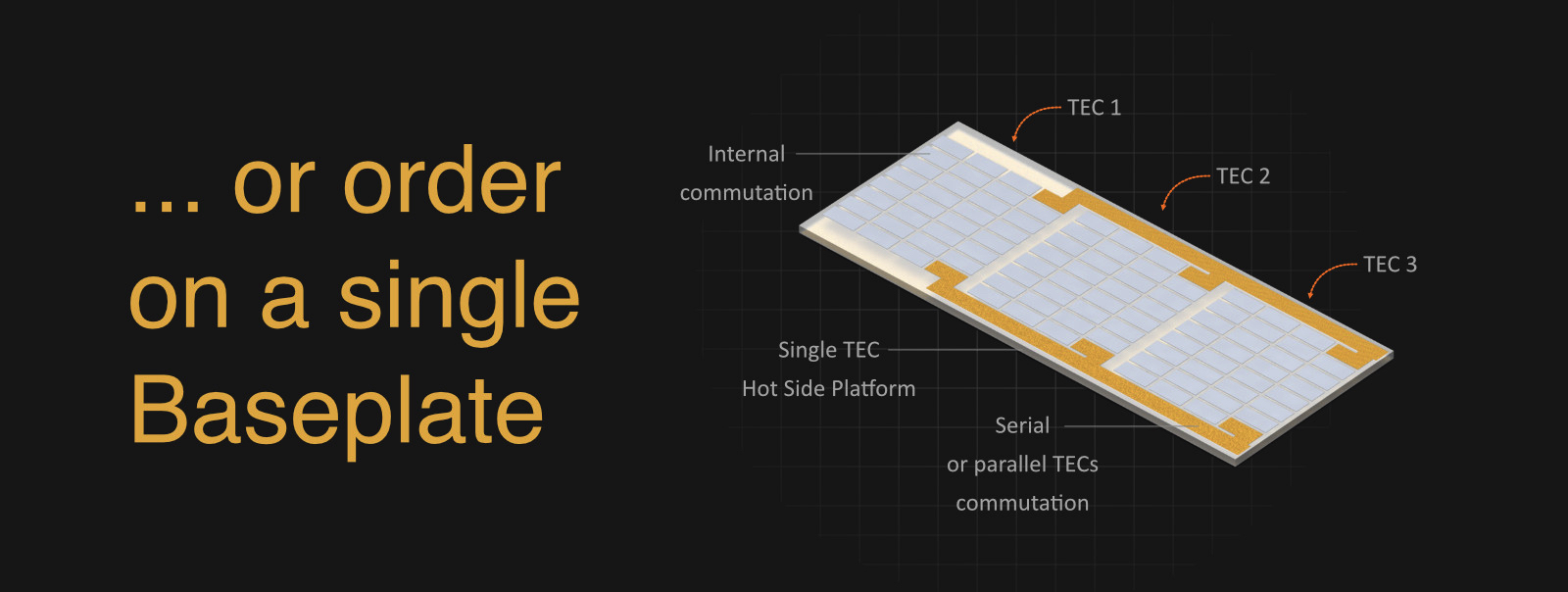

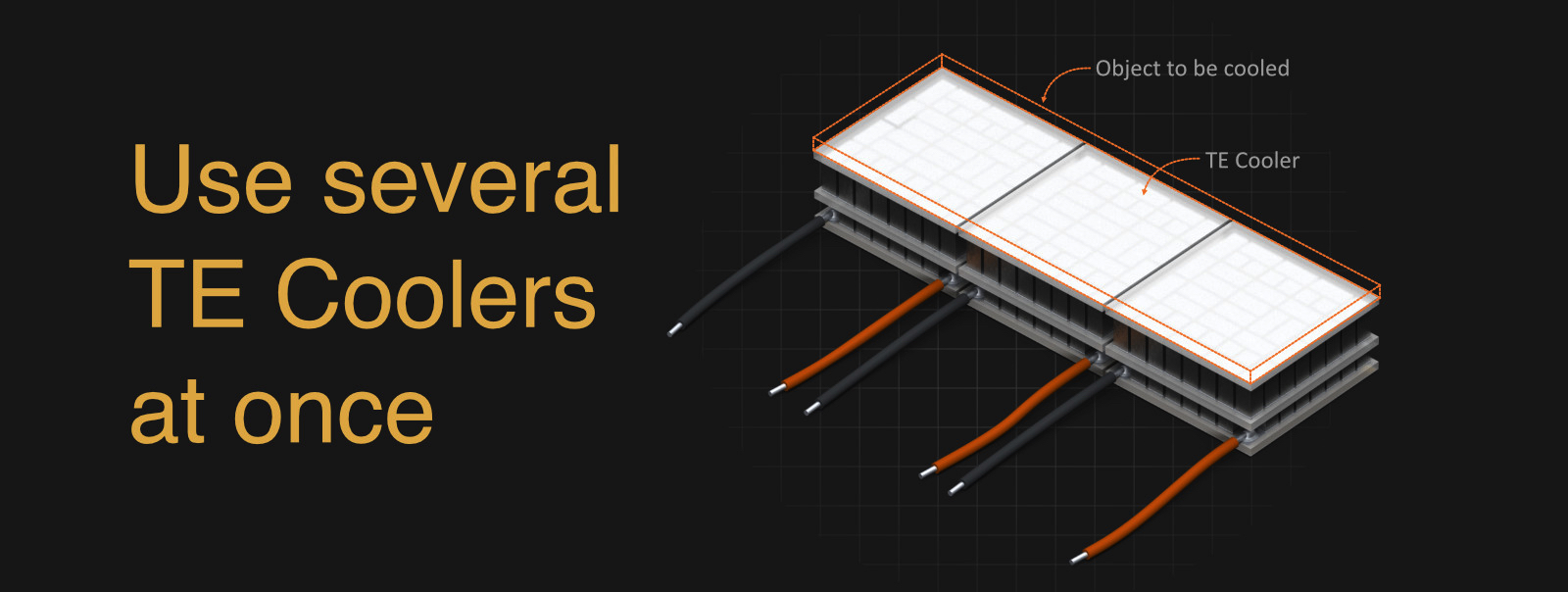

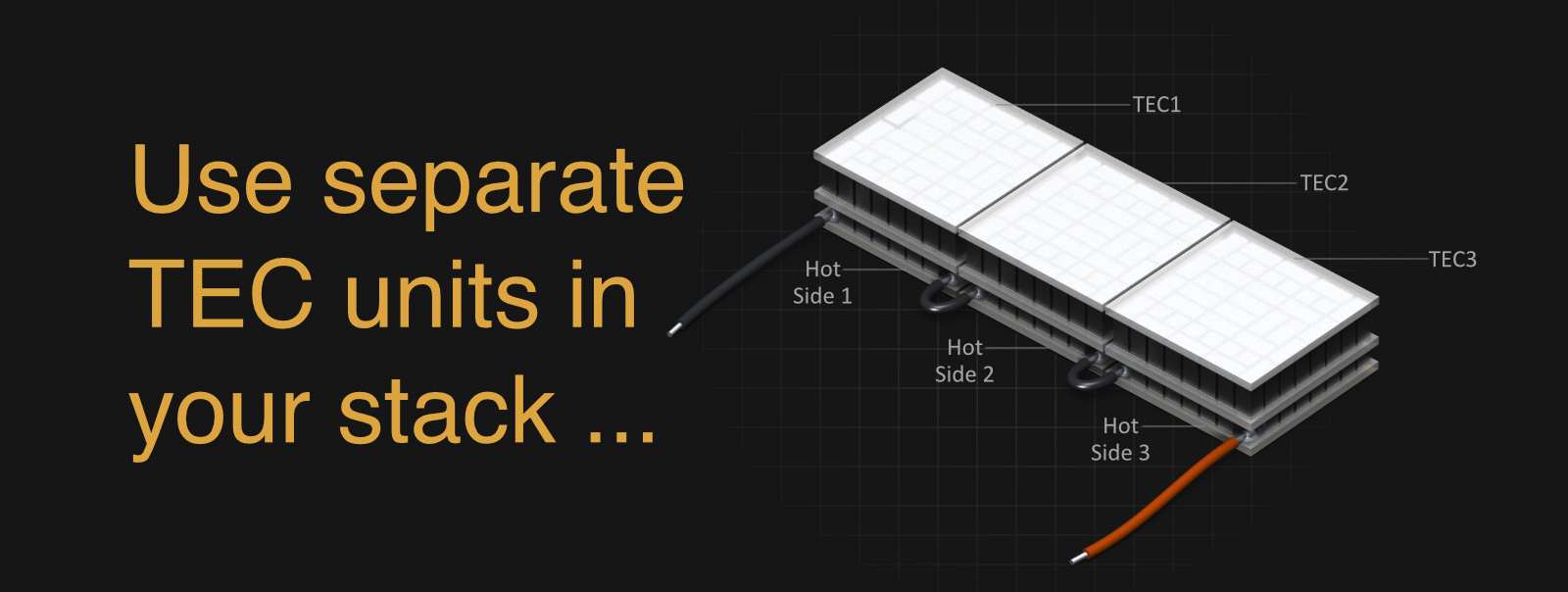

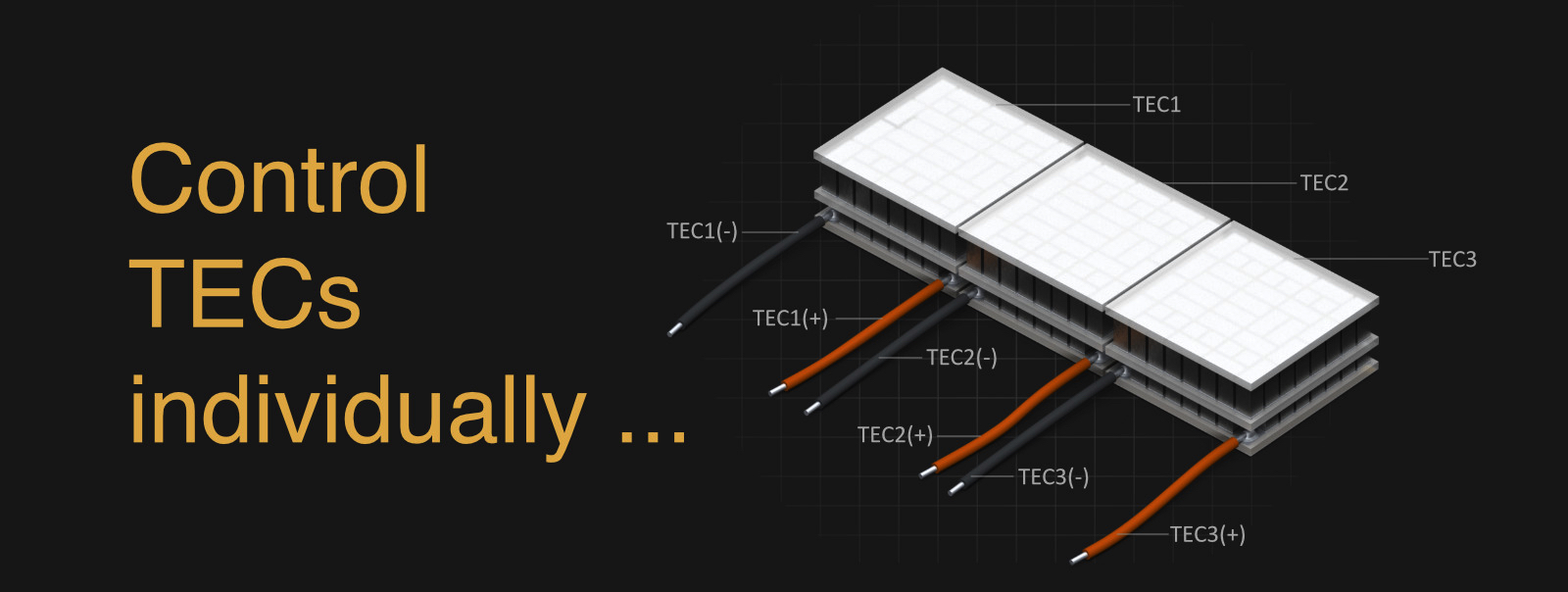

The key feature of all 2MDX thermoelectric coolers is their shape. These 2-stage TECs all have the same dimensions of cold and hot sides. There is no typical pyramidal shape here, like many standard multistage TECs have.  All 2MDX TECs have the equal size of the hot, cold and the middle plate in between, which makes these TECs look quite like a cube. Such shape allows combining these TECs into stack configurations, with multiple thermoelectric coolers connected in serial or parallel and even in a mixed serial-parallel way. With 2MDX TECs you may create any required cold side surface area for large objects and get all the benefits of 2-stage thermoelectric cooler performance.  On entry-level 2MDX TECs can be ordered separately for stack assembly later by customer. Or if required the configuration of TEC stack can be specified and ordered with all thermoelectric coolers already connected.  On the master-level TEC stack can be manufactured upon request on a single union hot side ceramics plate (can be a subject of customization).
