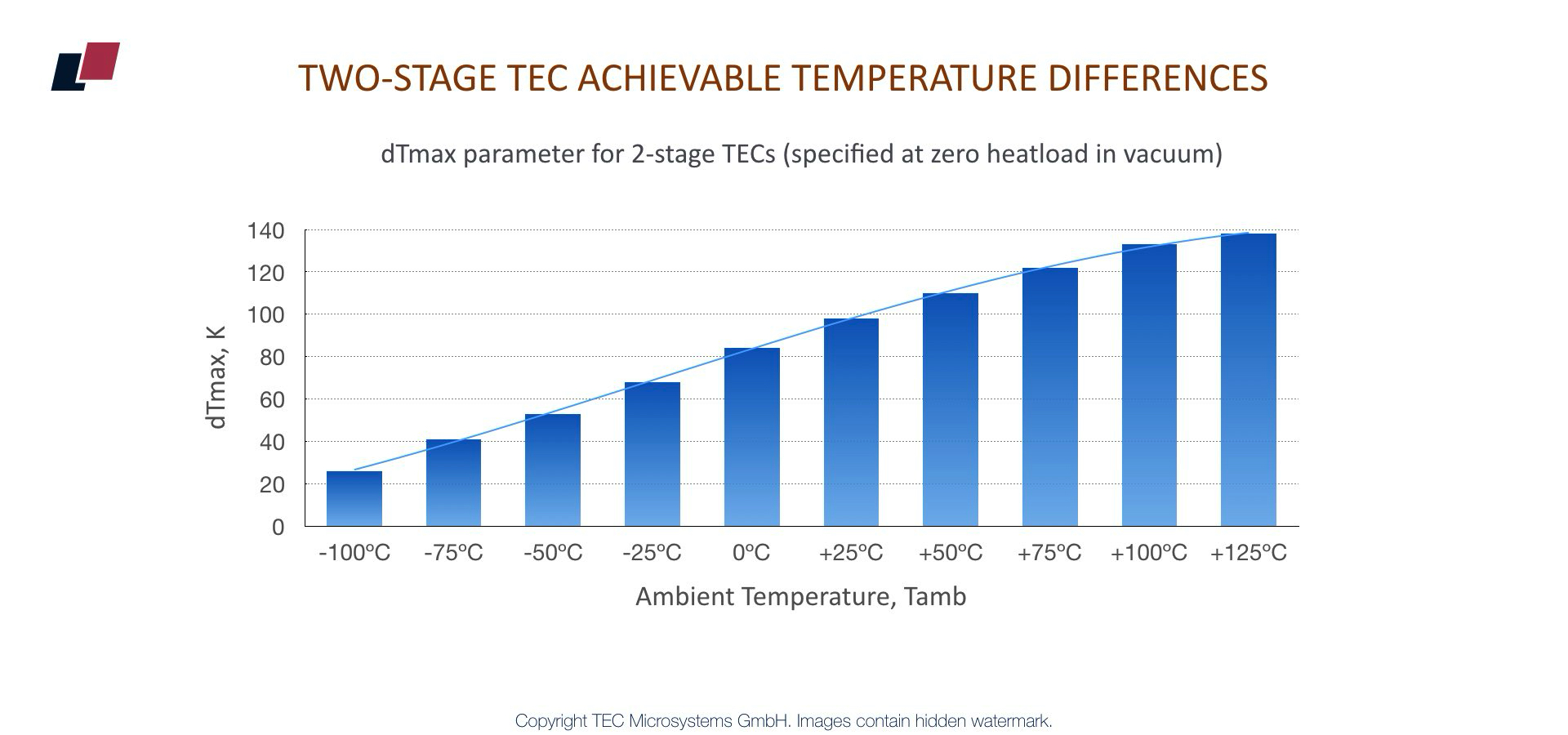

Performance @27ºC, Vacuum

Cold Side

Hot Side

Height

PDF

TEC TYPE

dTmax

Qmax

Imax

Umax

ACR

A

B

C

D

H



K

W

A

V

Ohm

mm

mm

mm

mm

mm

2MX04-043-xx (Al2O3 0.5mm versions)

2MX04-043-xx Thermoelectric Cooler

2MX04-043-0510

89

1.4

1.0

3.6

2.9

8.0

8.0

8.0

8.0

3.2

2MX04-043-0510 Thermoelectric Cooler Datasheet

2MX04-043-0816

90

0.9

0.7

3.6

4.5

8.0

8.0

8.0

8.0

4.1

2MX04-043-0816 Thermoelectric Cooler Datasheet

2MX04-043-xxt (Al2O3 0.25mm versions)

2MX04-043-xxt Thermoelectric Cooler

2MX04-043-0510t

90

1.4

1.1

3.6

2.9

8.0

8.0

8.0

8.0

2.4

2MX04-043-0510t Thermoelectric Cooler Datasheet

2MX04-043-0816t

90

0.9

0.7

3.6

4.5

8.0

8.0

8.0

8.0

3.3

2MX04-043-0816t Thermoelectric Cooler Datasheet

2MX04-043-xxAN (AlN 0.5mm versions)

2MX04-043-xxAN Thermoelectric Cooler

2MX04-043-0510AN

90

1.4

1.1

3.6

2.9

8.0

8.0

8.0

8.0

3.2

2MX04-043-0510AN Thermoelectric Cooler Datasheet

2MX04-043-0816AN

90

0.9

0.7

3.6

4.5

8.0

8.0

8.0

8.0

4.1

2MX04-043-0816AN Thermoelectric Cooler Datasheet

2MX04-043-xxAN25 (AlN 0.25mm versions)

2MX04-043-xxAN25 Thermoelectric Cooler

2MX04-043-0510AN25

90

1.4

1.1

3.6

2.9

8.0

8.0

8.0

8.0

2.4

2MX04-043-0510AN25 Thermoelectric Cooler Datasheet

2MX04-043-0816AN25

90

0.9

0.7

3.6

4.5

8.0

8.0

8.0

8.0

3.3

2MX04-043-0816AN25 Thermoelectric Cooler Datasheet

2MX04-046-xx (Al2O3 0.5mm versions)

2MX04-046-xx Thermoelectric Cooler

2MX04-046-0510

89

1.5

1.0

3.8

3.1

8.0

8.0

8.0

8.0

3.2

2MX04-046-0510 Thermoelectric Cooler Datasheet

2MX04-046-0816

90

1.0

0.7

3.9

4.8

8.0

8.0

8.0

8.0

4.1

2MX04-046-0816 Thermoelectric Cooler Datasheet

2MX04-046-xxt (Al2O3 0.25mm versions)

2MX04-046-xxt Thermoelectric Cooler

2MX04-046-0510t

90

1.5

1.1

3.8

3.1

8.0

8.0

8.0

8.0

2.4

2MX04-046-0510t Thermoelectric Cooler Datasheet

2MX04-046-0816t

90

1.0

0.7

3.9

4.8

8.0

8.0

8.0

8.0

3.3

2MX04-046-0816t Thermoelectric Cooler Datasheet

2MX04-046-xxAN (AlN 0.5mm versions)

2MX04-046-xxAN Thermoelectric Cooler

2MX04-046-0510AN

90

1.5

1.1

3.9

3.1

8.0

8.0

8.0

8.0

3.2

2MX04-046-0510AN Thermoelectric Cooler Datasheet

2MX04-046-0816AN

90

1.0

0.7

3.9

4.8

8.0

8.0

8.0

8.0

4.1

2MX04-046-0816AN Thermoelectric Cooler Datasheet

2MX04-046-xxAN25 (AlN 0.25mm versions)

2MX04-046-xxAN25 Thermoelectric Cooler

2MX04-046-0510AN25

90

1.5

1.1

3.9

3.1

8.0

8.0

8.0

8.0

2.4

2MX04-046-0510AN25 Thermoelectric Cooler Datasheet

2MX04-046-0816AN25

91

1.0

0.7

3.9

4.8

8.0

8.0

8.0

8.0

3.3

2MX04-046-0816AN25 Thermoelectric Cooler Datasheet

2MX04-092-0515

2MX04-092-xx Thermoelectric Cooler

2MX04-092-0515

96

2.8

1.2

8.6

6.1

9.6

9.6

9.6

9.6

3.7

2MX04-092-0515 Thermoelectric Cooler Datasheet

2MX04-092-0515t

97

2.8

1.2

8.5

6.1

9.6

9.6

9.6

9.6

2.9

2MX04-092-0515t Thermoelectric Cooler Datasheet

2MX04-092-0515AN

97

2.8

1.2

8.6

6.1

9.6

9.6

9.6

9.6

3.7

2MX04-092-0515AN Thermoelectric Cooler Datasheet

2MX04-092-0515AN25

97

2.8

1.2

8.6

6.1

9.6

9.6

9.6

9.6

2.9

2MX04-092-0515AN25 Thermoelectric Cooler Datasheet

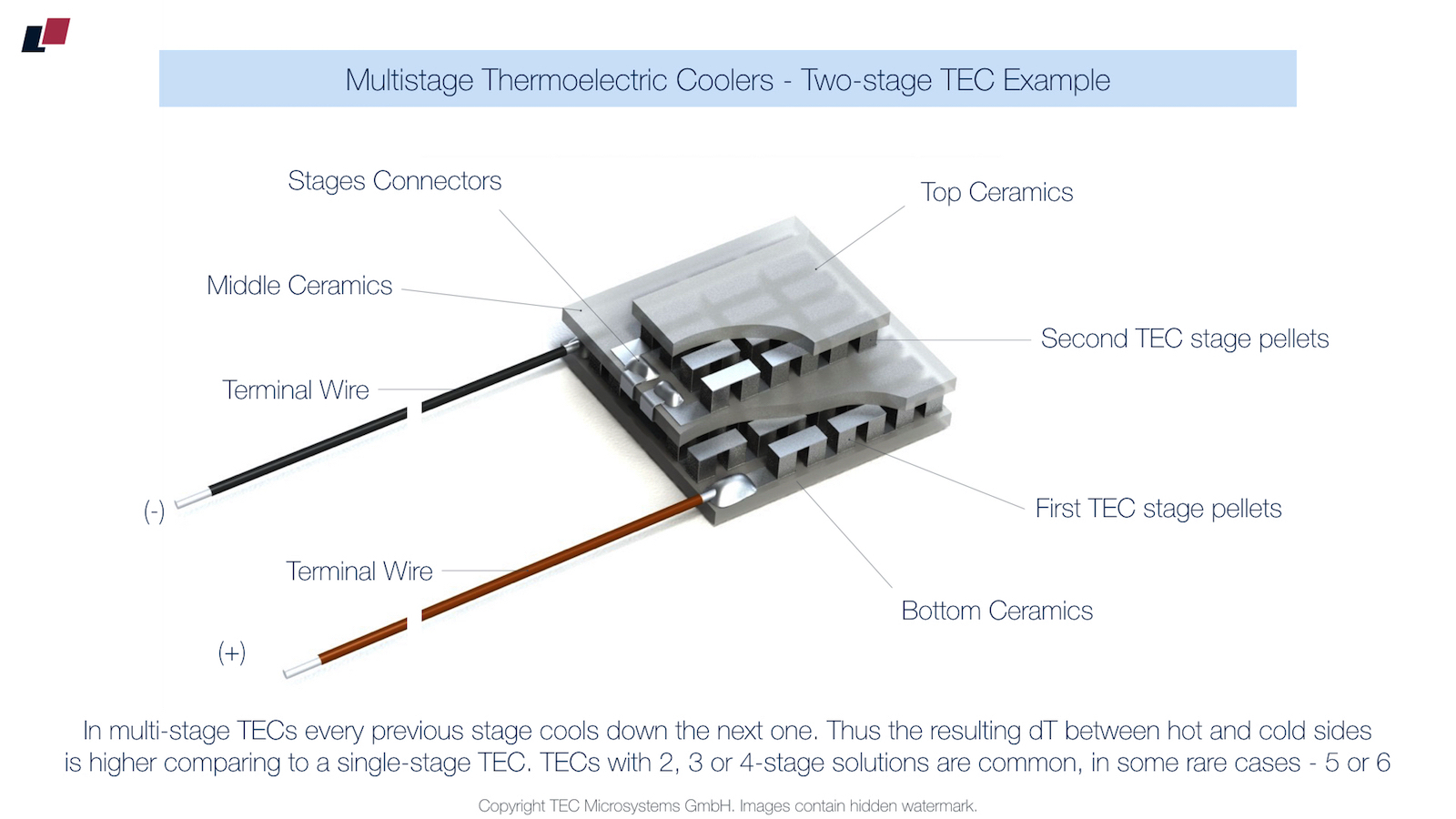

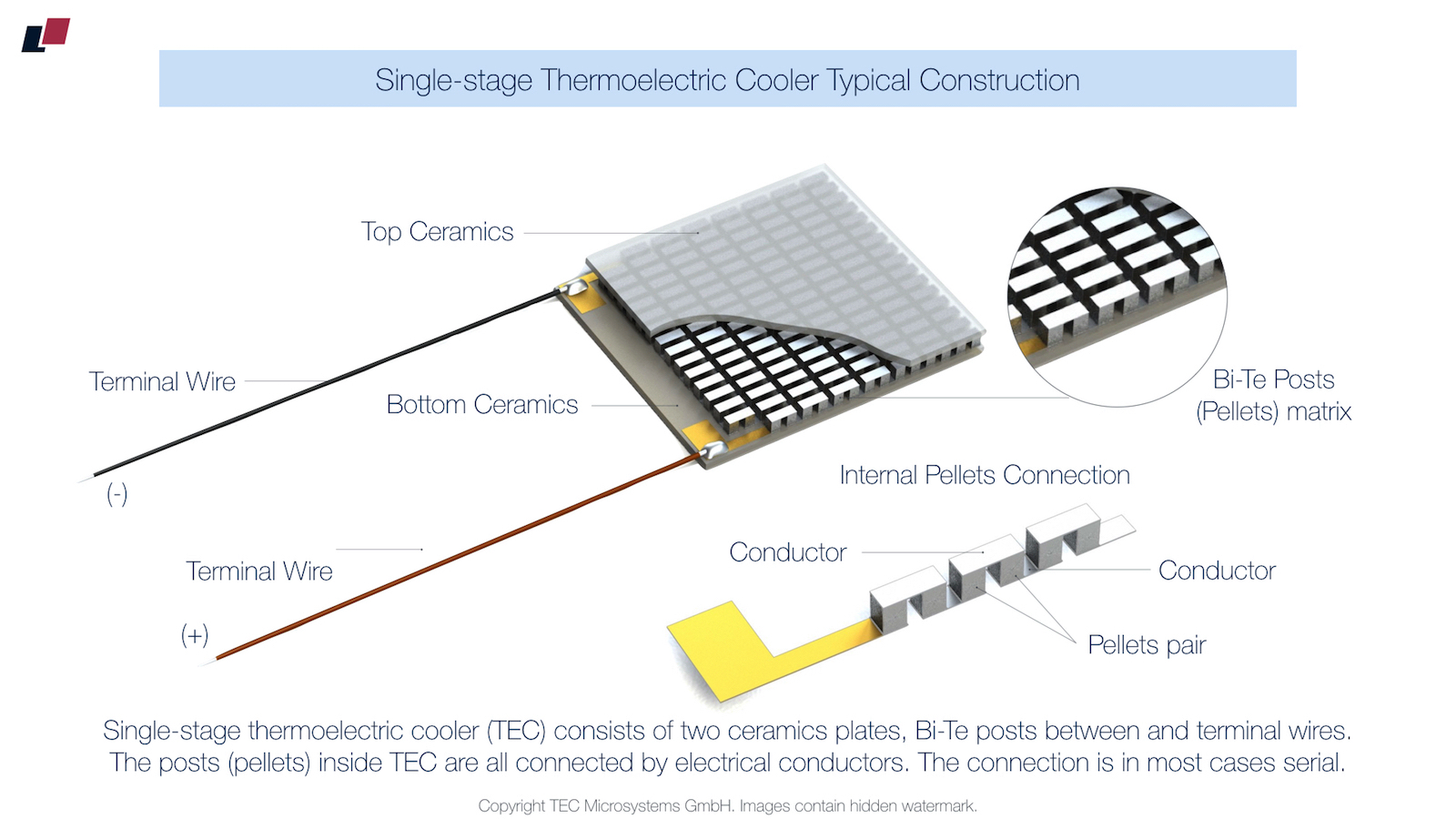

Two-stage TECs of 2MX04 type have a revised commutation between BiTe pellet pairs inside the second stage. The special mix of serial and parallel commutation increases the number of pellets on the top stage.  This helps to avoid classical pyramidal shape of the multistage TEC and get more space for the object to be cooled.  The balanced stage coefficient (the ratio between the number of pellets on the top and bottom stages) is achieved by pellets height adjustment. That's why the 2-stage TECs in MX group have BiTe pellets in the 2nd stage higher than in the 1st stage. Such a method allows the enlargement of TEC cold side, increases the mechanical endurance of the TEC second stage with more pellets installed, and keeps the optimal cooling performance without increasing current or voltage. 2MX TE coolers are perfect for X-Ray and IR detector applications. All 2MX04 TECs are assembled using RoHS-compliant Sn-Sb solder (Tmelt=230ºC) and meet Telcordia GR-486 standard requirements. The most common MX-type thermoelectric types are listed in the table below. Detailed TEC drawings, 3D models, performance plots and estimations for particular application conditions are provided by request.

STANDARD 2MX04 TYPE  2-STAGE THERMOELECTRIC COOLERS

2MX TE COOLERS ADVANTAGES

2MX TE COOLERS KEY FEATURES

◻︎ Mixed serial/parallel pellets commutation

◻ Enlarged thermoelectric cooler cold side

◻ Wide range of standard TEC types available

◻ Wide range of manufacturing options available

◻ High-quality bulk BiTe material

◻ Accurate steam soldering technology

◻ RoHS compliant TE Coolers by default

◻ Telcordia GR-468 qualified TECs

MX04 type 2-stage thermoelectric coolers - advanced balance of cooling performance and power consumption
